Antenna information for TRMR780-2 NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 0.91 E: 0.00 U: 124.88
L2: N: 1.39 E: -0.60 U: 115.11
L5: N: 1.15 E: -0.79 U: 110.54

GLONASS

L1: N: 1.01 E: 0.16 U: 125.20
L2: N: 1.31 E: -0.52 U: 116.41

GALILEO

E1: N: 0.91 E: 0.00 U: 124.88
E5a: N: 1.15 E: -0.79 U: 110.54
E5b: N: 1.37 E: -0.69 U: 113.44
E5: N: 1.29 E: -0.74 U: 112.06
E6: N: 0.96 E: -0.34 U: 118.41

BeiDou

E1: N: 0.91 E: 0.00 U: 124.88
E2: N: 0.88 E: -0.09 U: 124.69
E5b: N: 1.37 E: -0.69 U: 113.44
E6: N: 1.10 E: -0.40 U: 117.81

QZSS

L1: N: 0.91 E: 0.00 U: 124.88
L2: N: 1.39 E: -0.60 U: 115.11
L5: N: 1.15 E: -0.79 U: 110.54
LEX: N: 0.96 E: -0.34 U: 118.41

SBAS

L1: N: 0.91 E: 0.00 U: 124.88
L5: N: 1.15 E: -0.79 U: 110.54

L1

GPS: N: 0.91 E: 0.00 U: 124.88
GLONASS: N: 1.01 E: 0.16 U: 125.20
QZSS: N: 0.91 E: 0.00 U: 124.88
SBAS: N: 0.91 E: 0.00 U: 124.88

L2

GPS: N: 1.39 E: -0.60 U: 115.11
GLONASS: N: 1.31 E: -0.52 U: 116.41
QZSS: N: 1.39 E: -0.60 U: 115.11

L5

GPS: N: 1.15 E: -0.79 U: 110.54
QZSS: N: 1.15 E: -0.79 U: 110.54
SBAS: N: 1.15 E: -0.79 U: 110.54

E1

GALILEO: N: 0.91 E: 0.00 U: 124.88
BeiDou: N: 0.91 E: 0.00 U: 124.88

E2

BeiDou: N: 0.88 E: -0.09 U: 124.69

E5

GALILEO: N: 1.29 E: -0.74 U: 112.06

E5a

GALILEO: N: 1.15 E: -0.79 U: 110.54

E5b

GALILEO: N: 1.37 E: -0.69 U: 113.44
BeiDou: N: 1.37 E: -0.69 U: 113.44

E6

GALILEO: N: 0.96 E: -0.34 U: 118.41
BeiDou: N: 1.10 E: -0.40 U: 117.81

LEX

QZSS: N: 0.96 E: -0.34 U: 118.41


Means

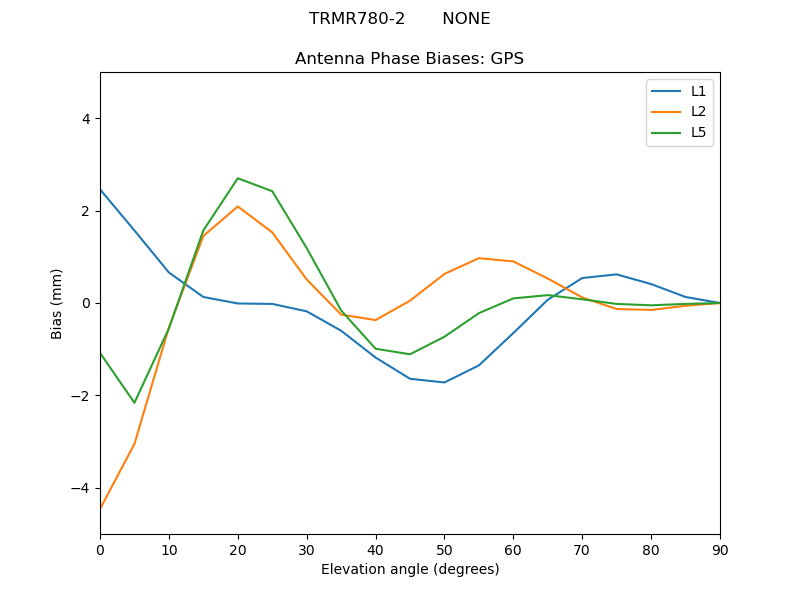

GPS

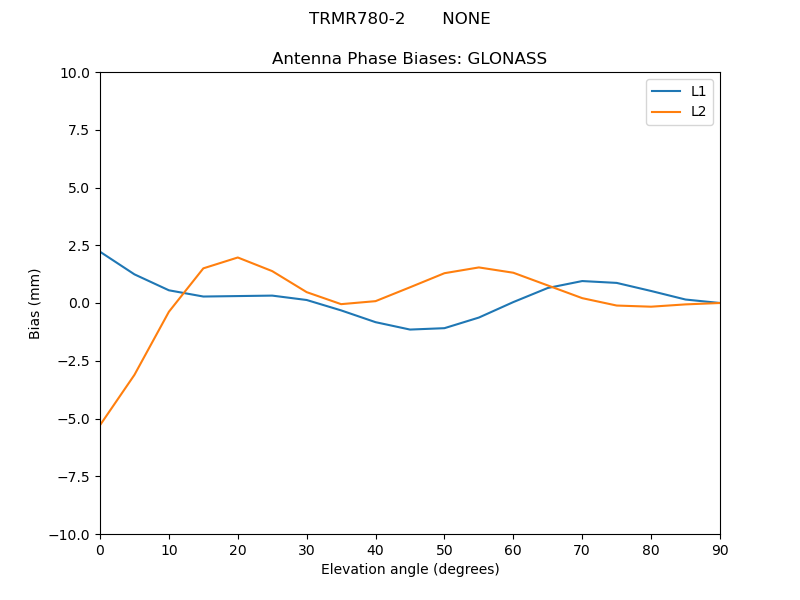

GLONASS

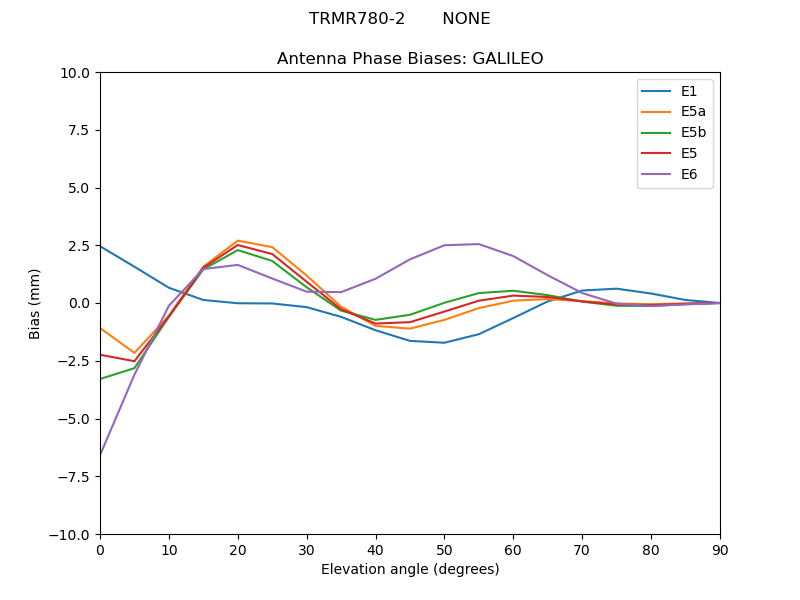

GALILEO


BeiDOU

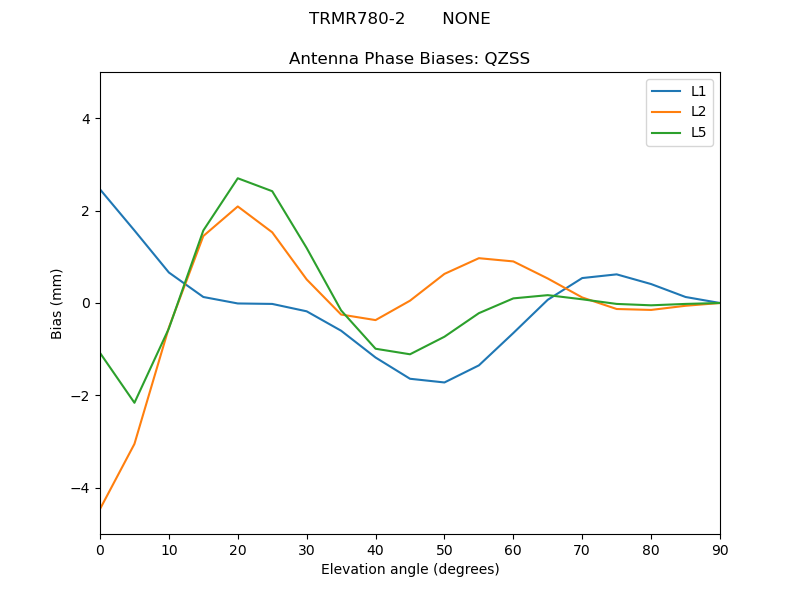

QZSS

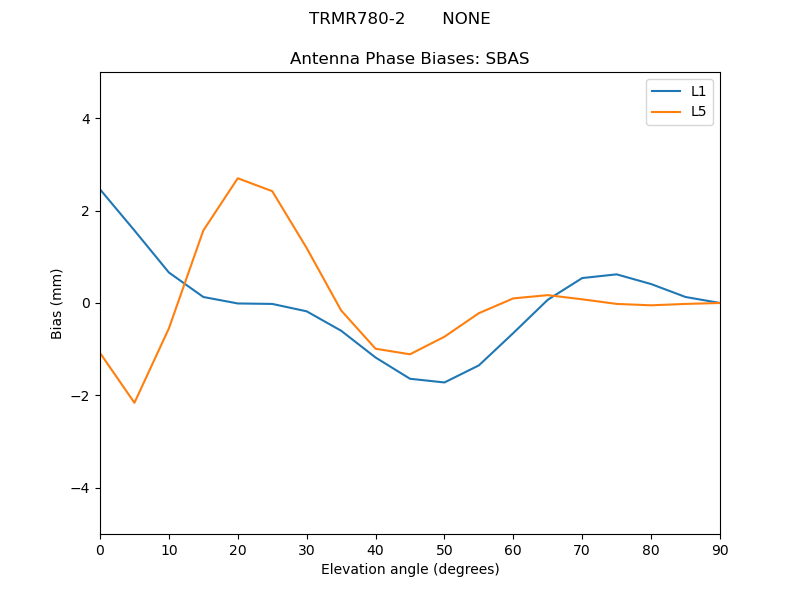

SBAS


Azimuths

GPS


Bias Delta

GPS-L1

GPS-L1GPS-L1

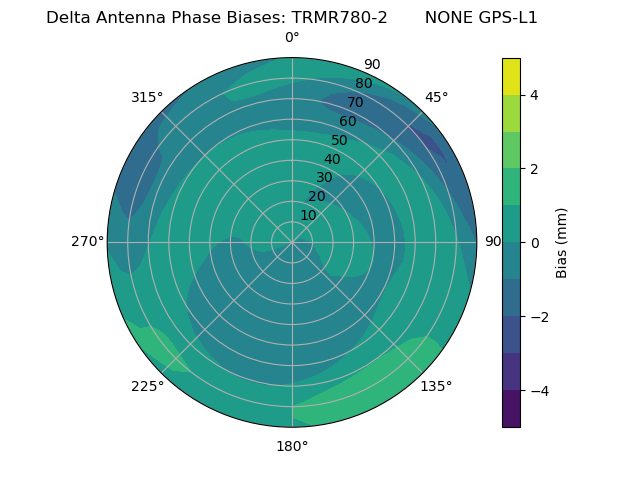

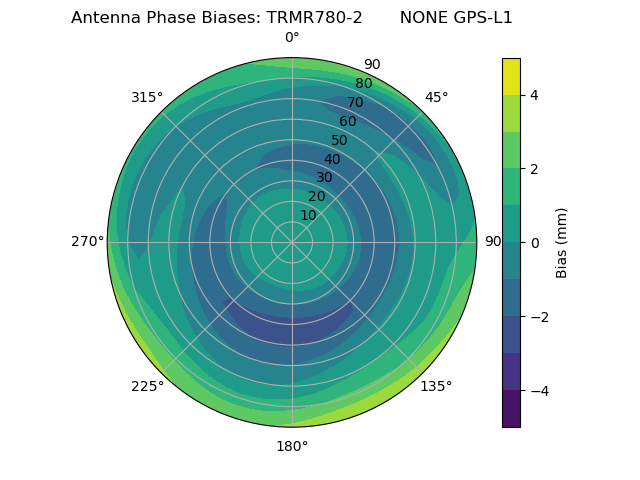

Radial GPS-L1Radial GPS-L1

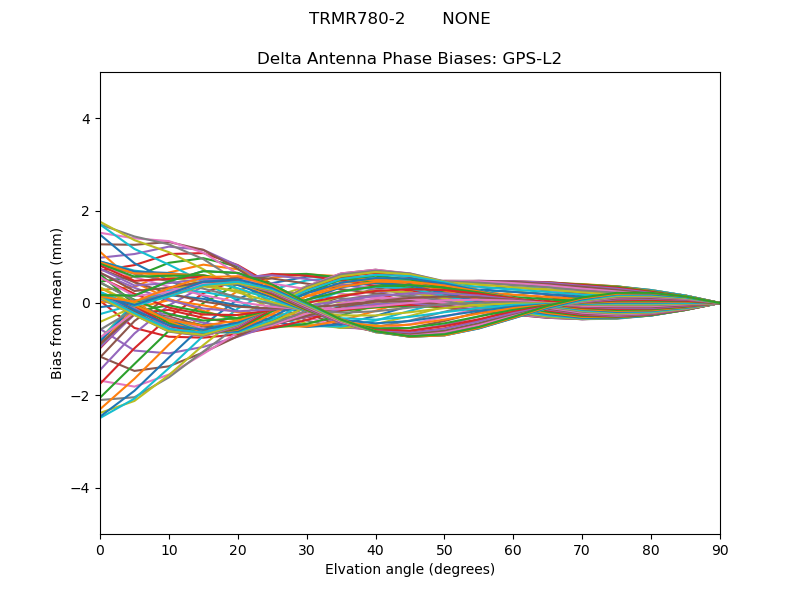

GPS-L2

GPS-L2GPS-L2

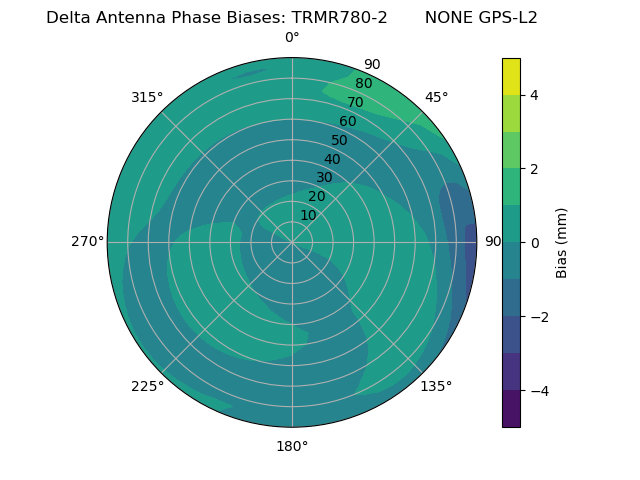

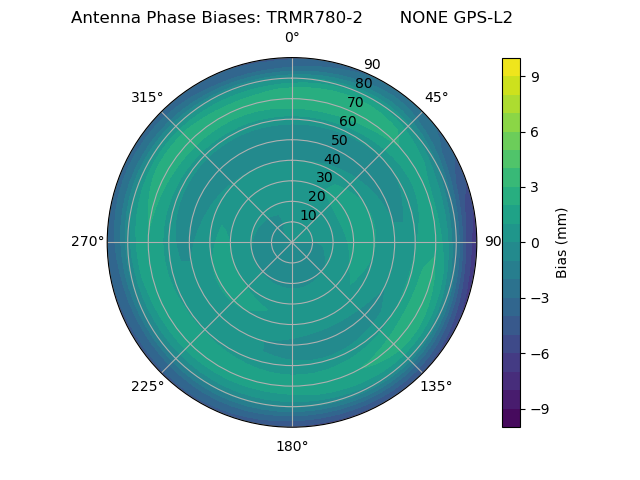

Radial GPS-L2Radial GPS-L2

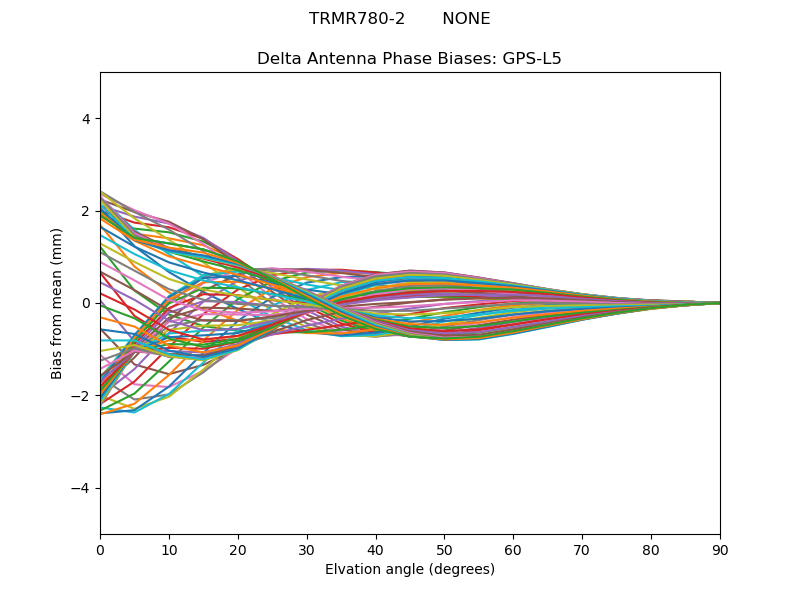

GPS-L5

GPS-L5GPS-L5

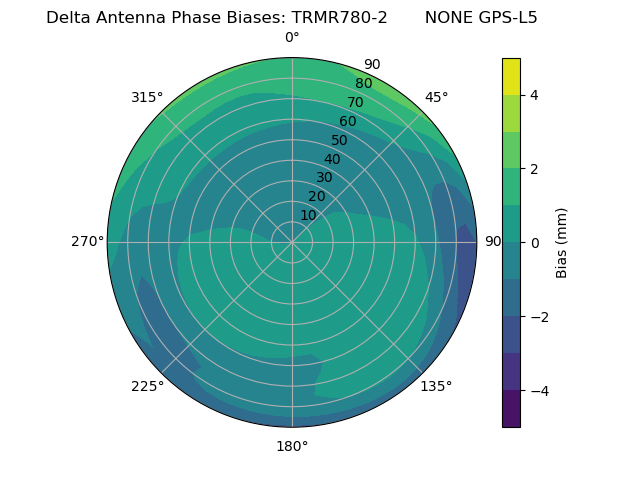

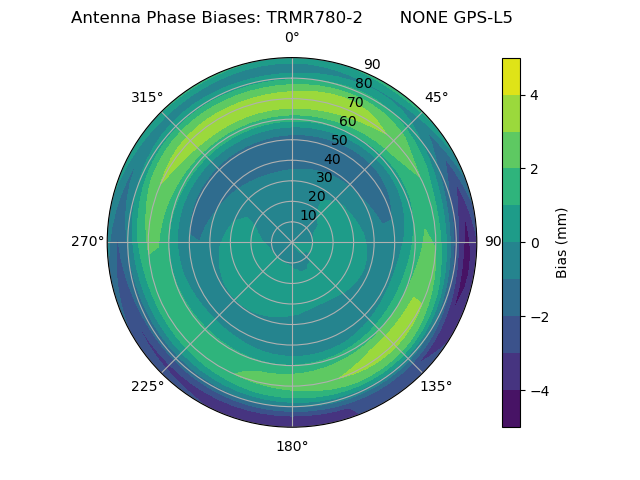

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

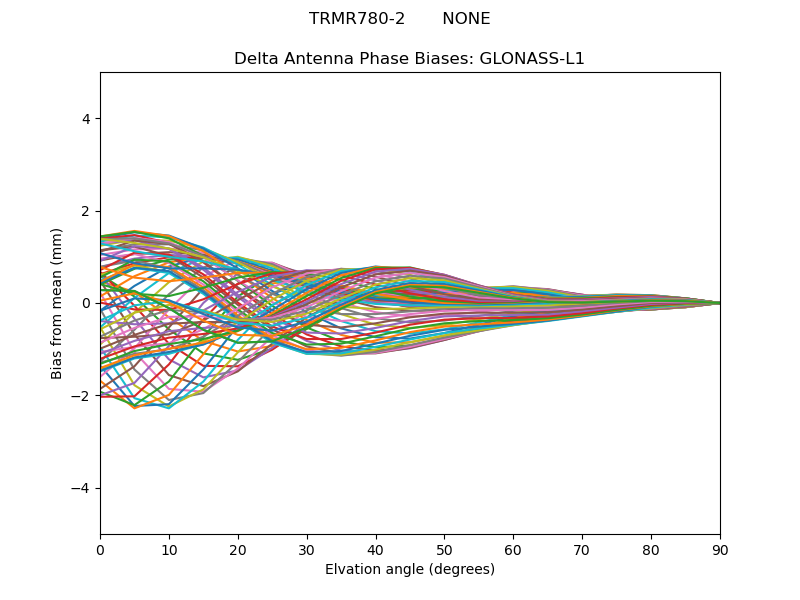

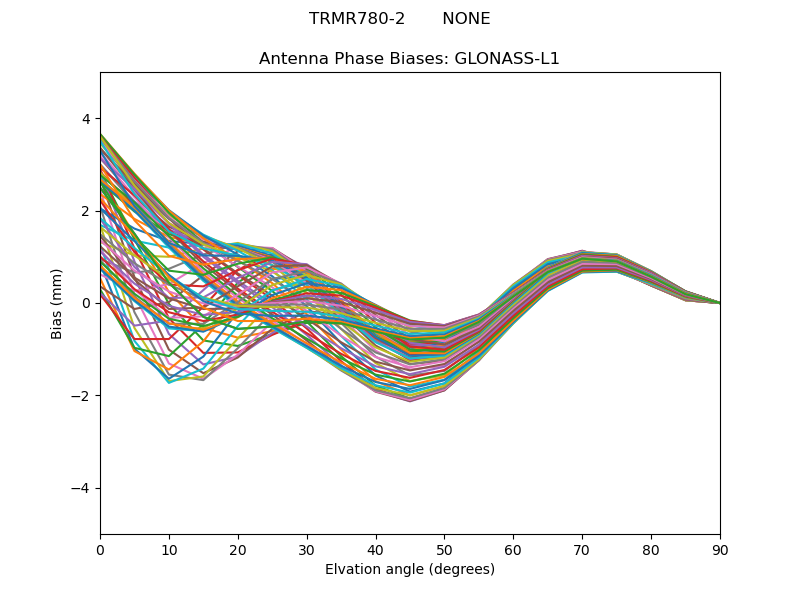

GLONASS-L1

GLONASS-L1GLONASS-L1

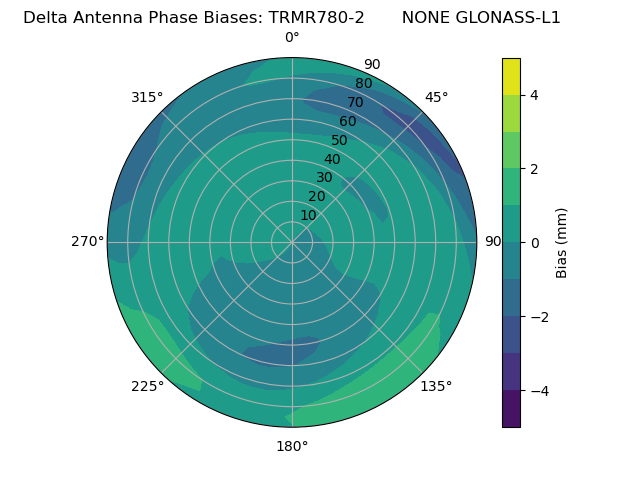

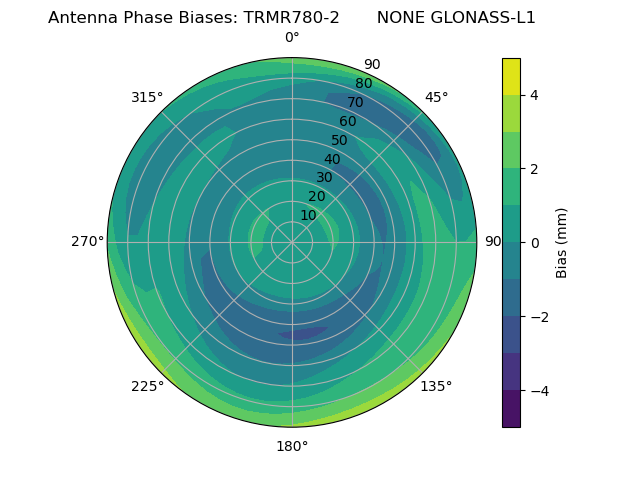

Radial GLONASS-L1Radial GLONASS-L1

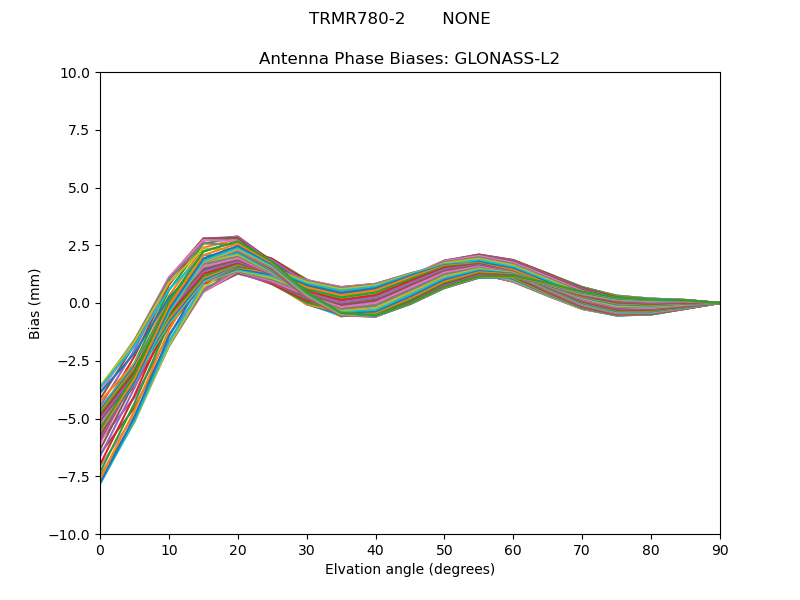

GLONASS-L2

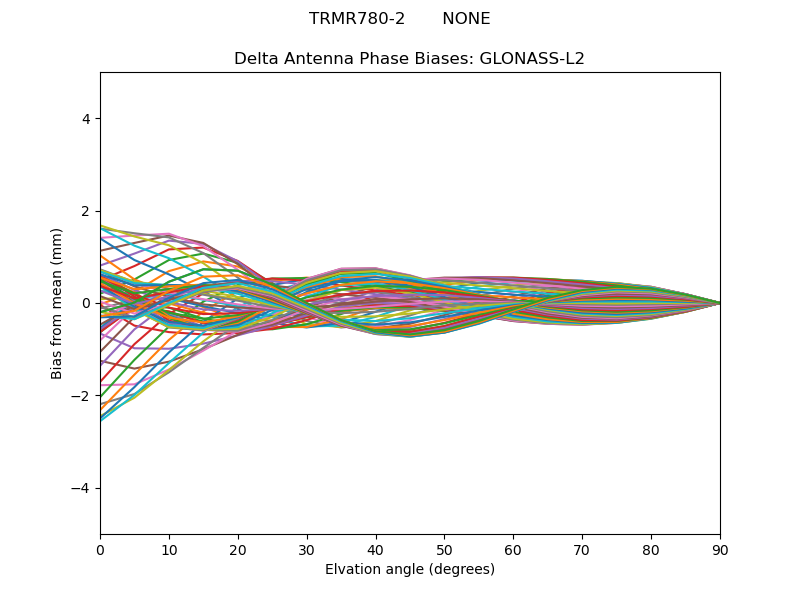

GLONASS-L2GLONASS-L2

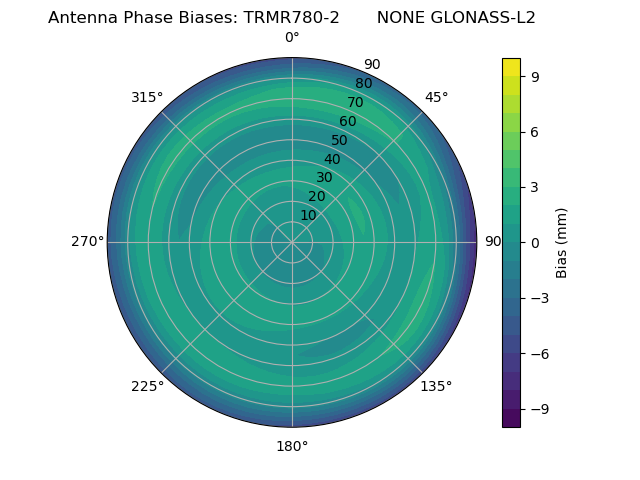

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

GALILEO-E1GALILEO-E1
Radial GALILEO-E1Radial GALILEO-E1

GALILEO-E5a

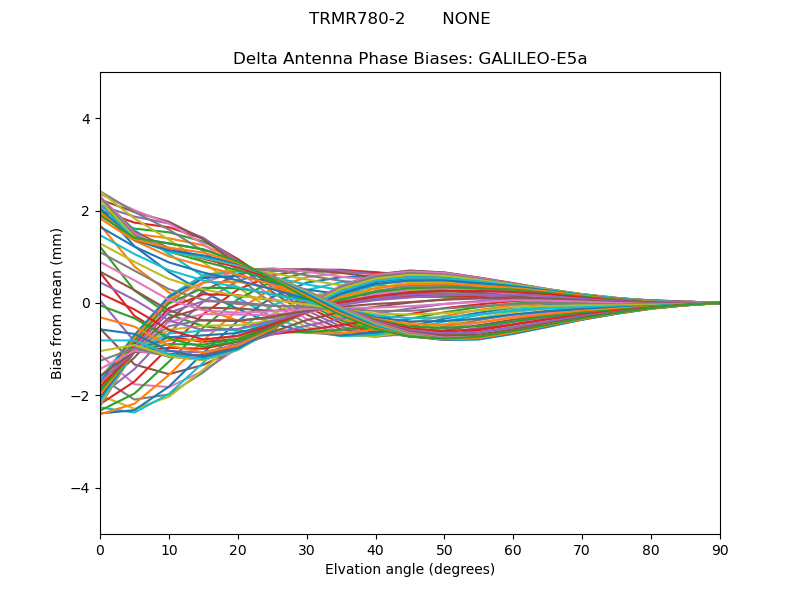

GALILEO-E5aGALILEO-E5a

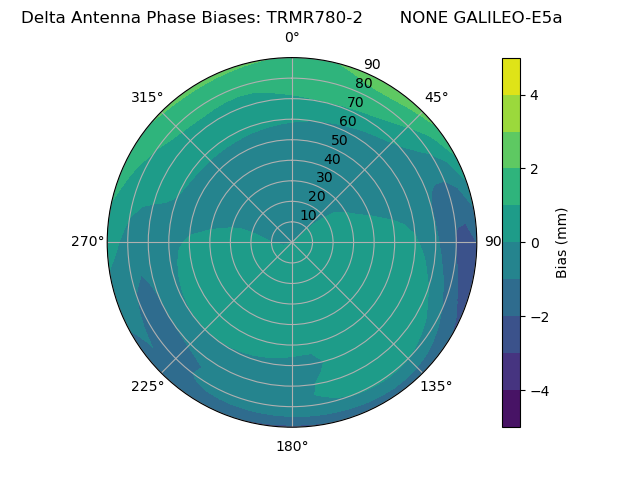

Radial GALILEO-E5aRadial GALILEO-E5a

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

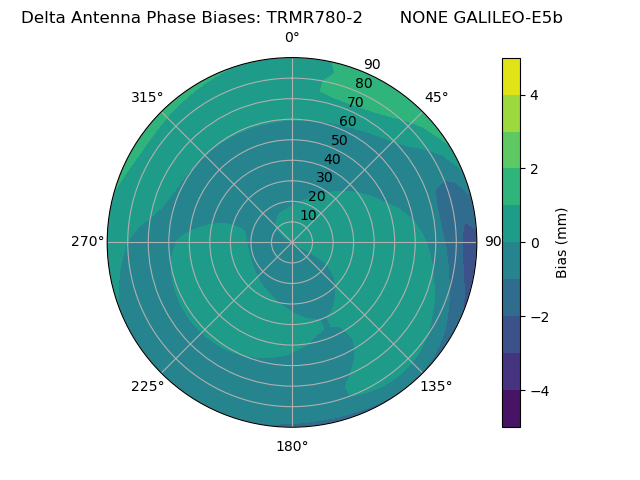

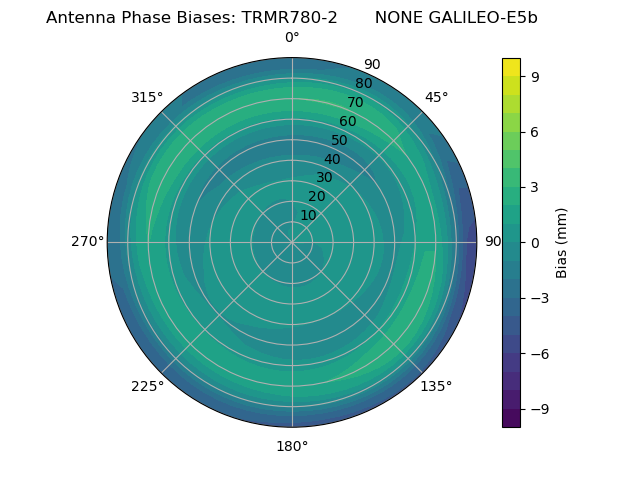

Radial GALILEO-E5bRadial GALILEO-E5b

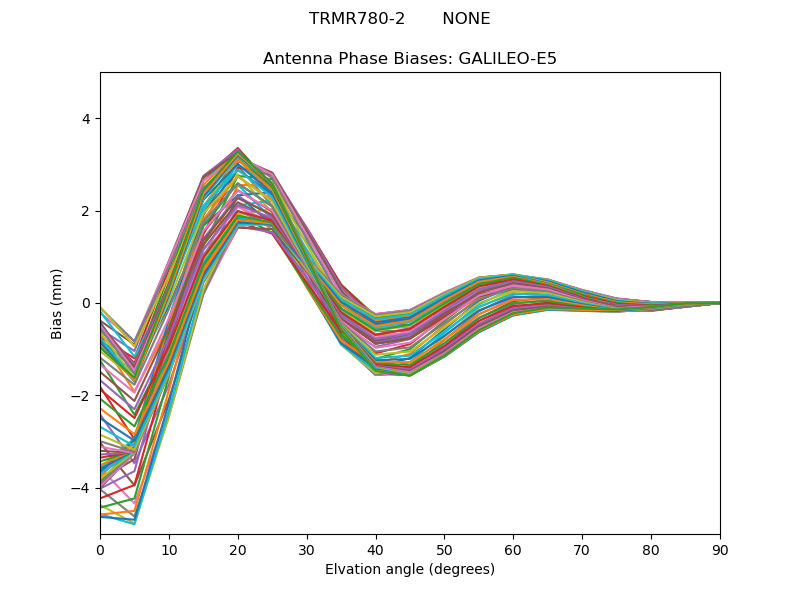

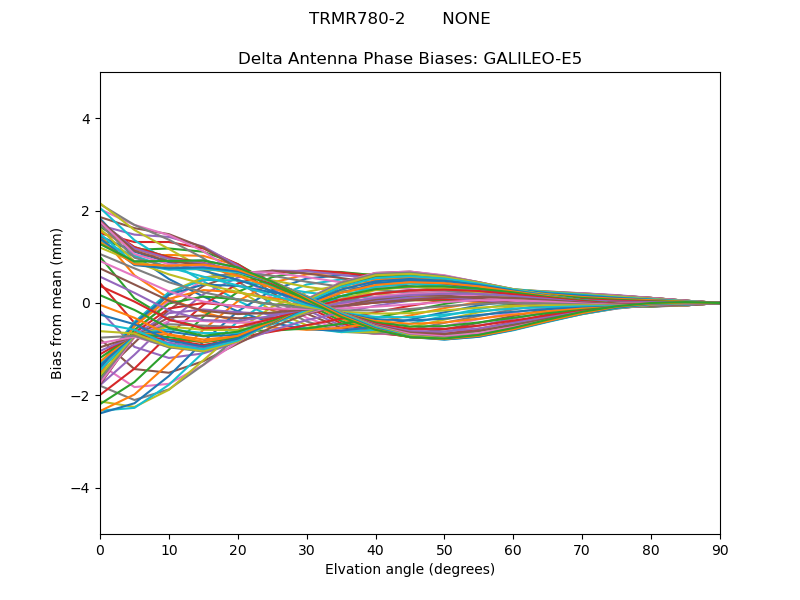

GALILEO-E5

GALILEO-E5GALILEO-E5

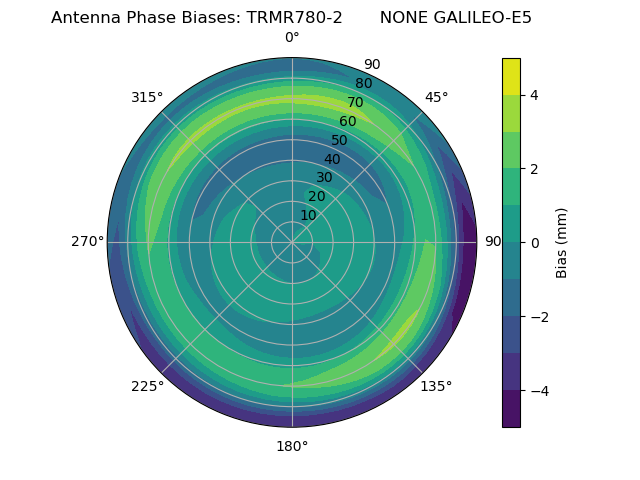

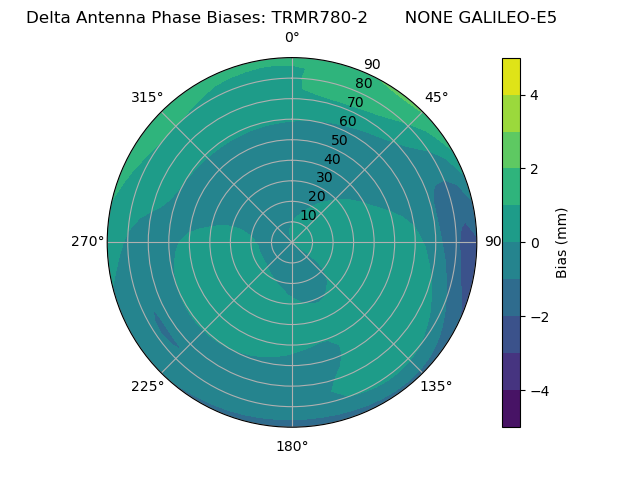

Radial GALILEO-E5Radial GALILEO-E5

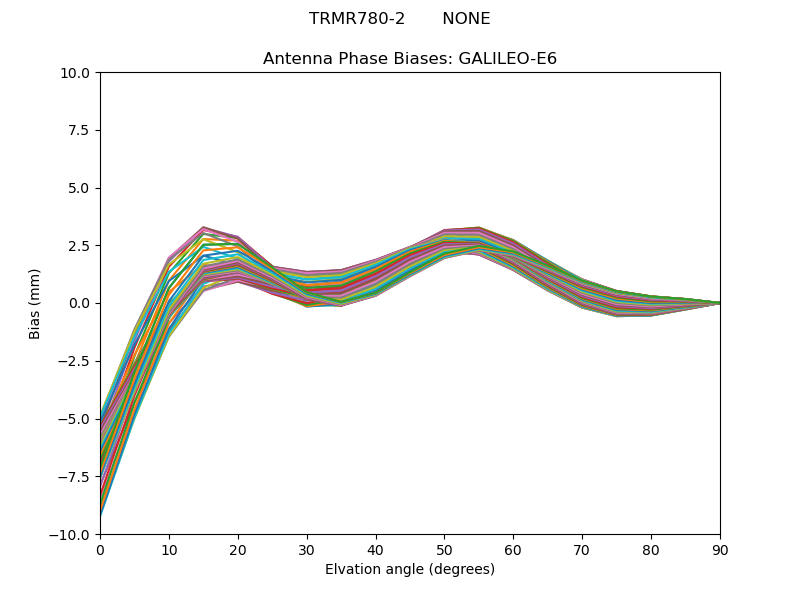

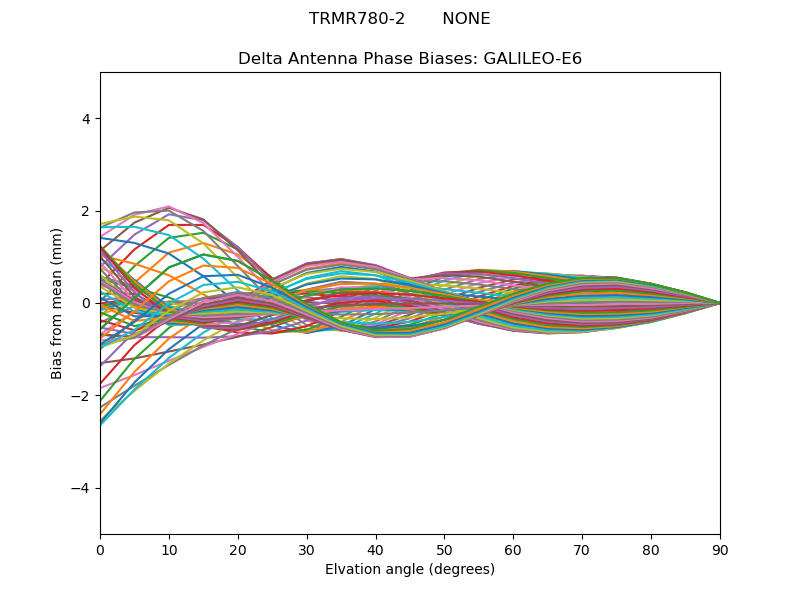

GALILEO-E6

GALILEO-E6GALILEO-E6
Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

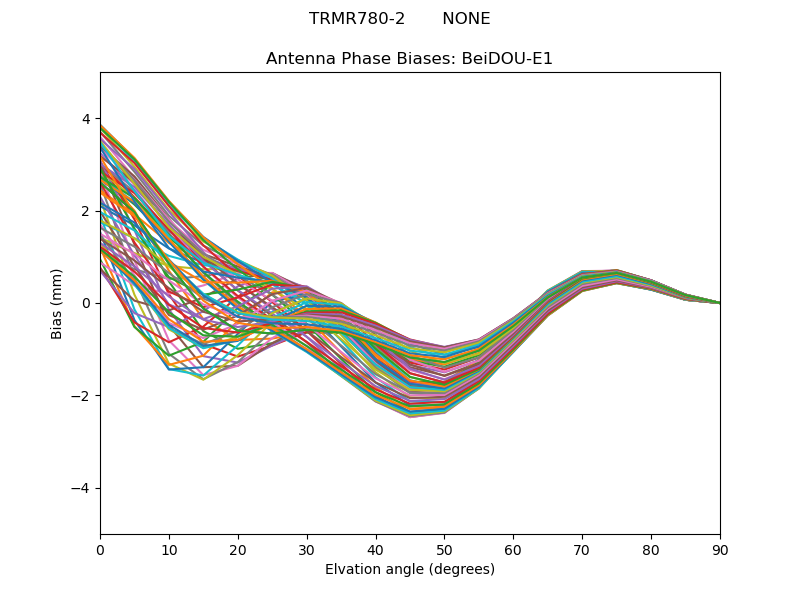

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

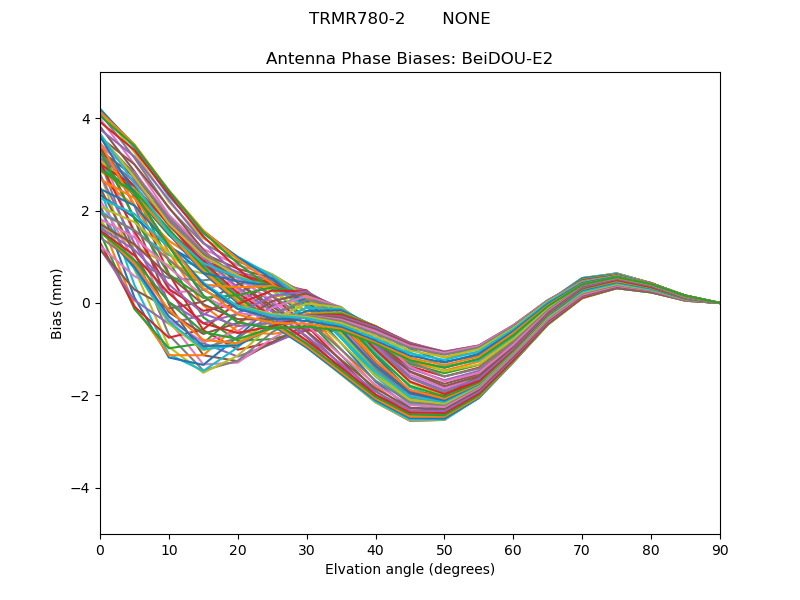

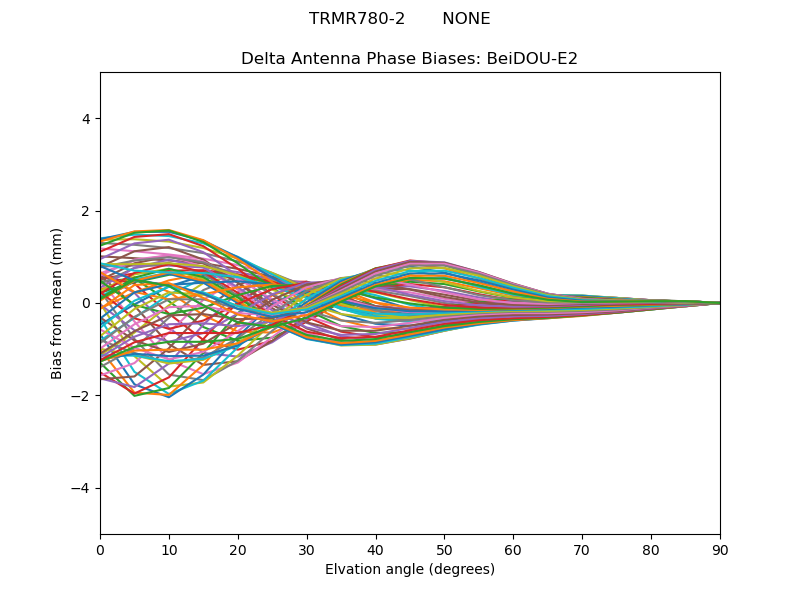

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

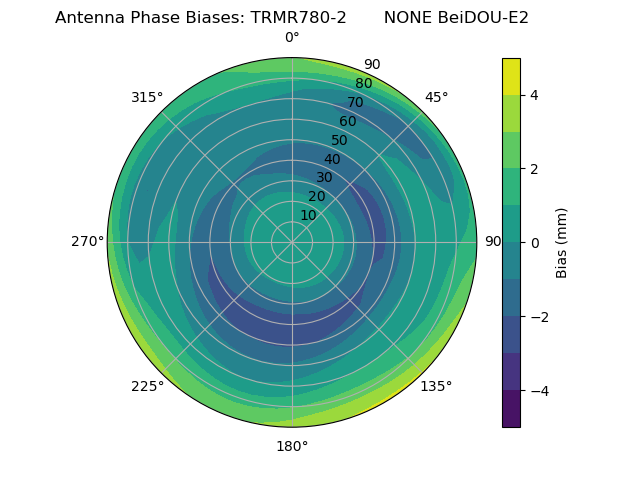

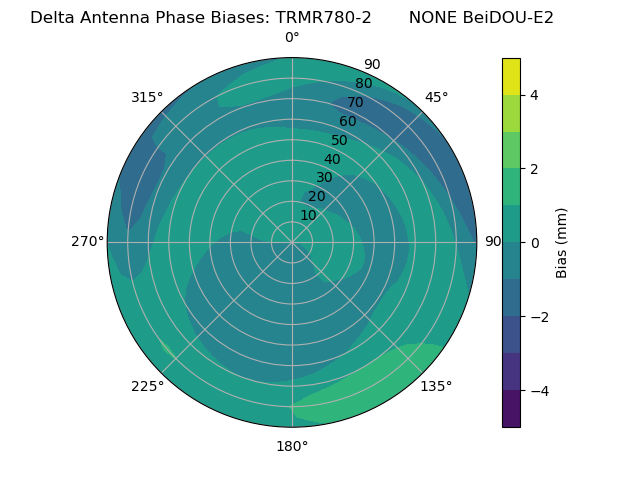

Radial BeiDOU-E2Radial BeiDOU-E2

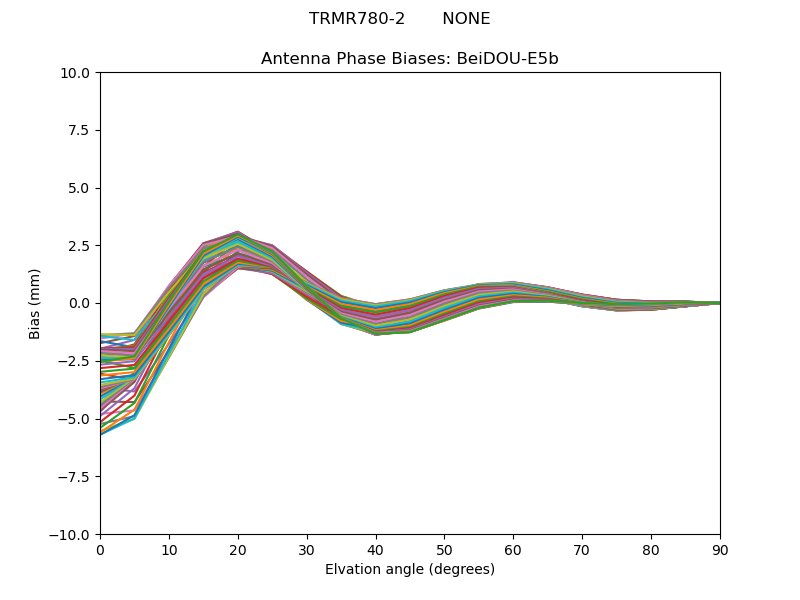

BeiDOU-E5b

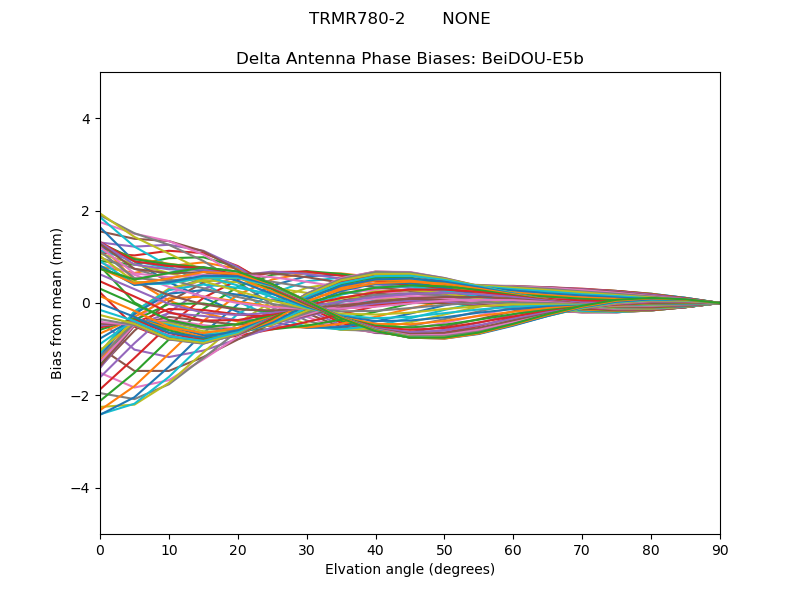

BeiDOU-E5bBeiDOU-E5b

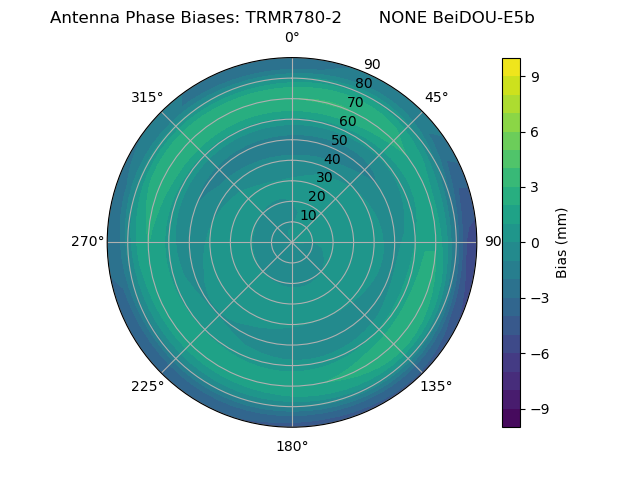

Radial BeiDOU-E5bRadial BeiDOU-E5b

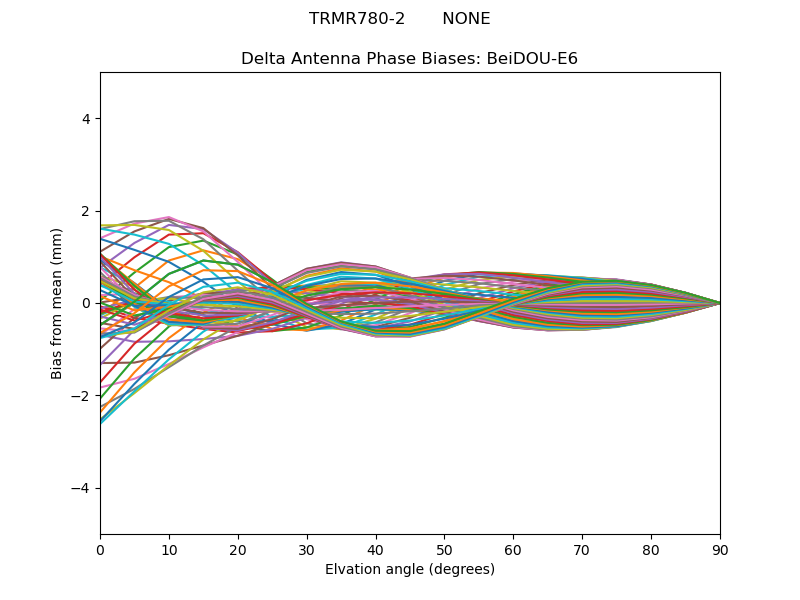

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

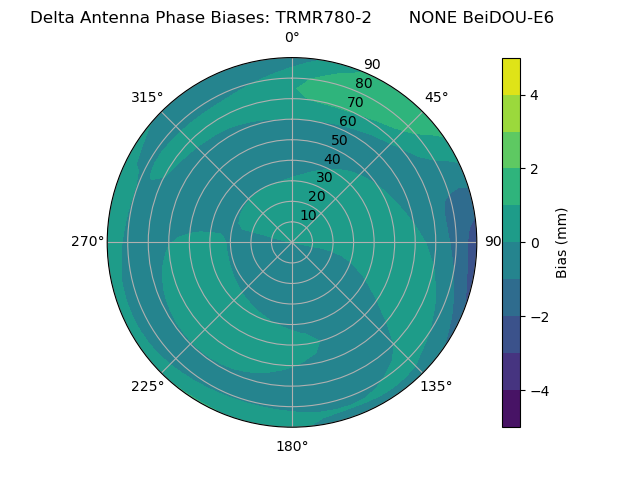

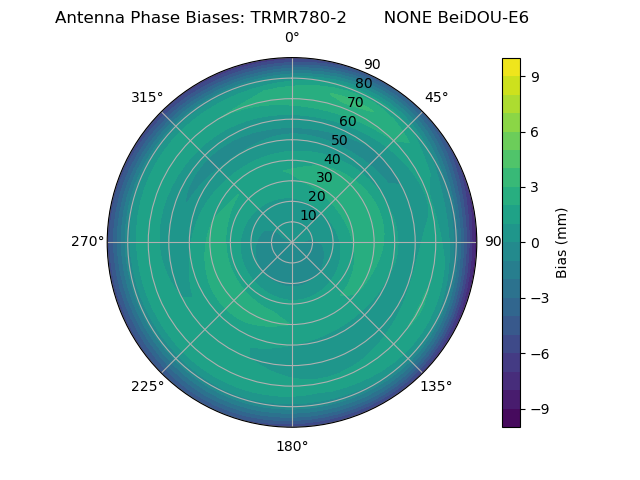

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

QZSS-L1

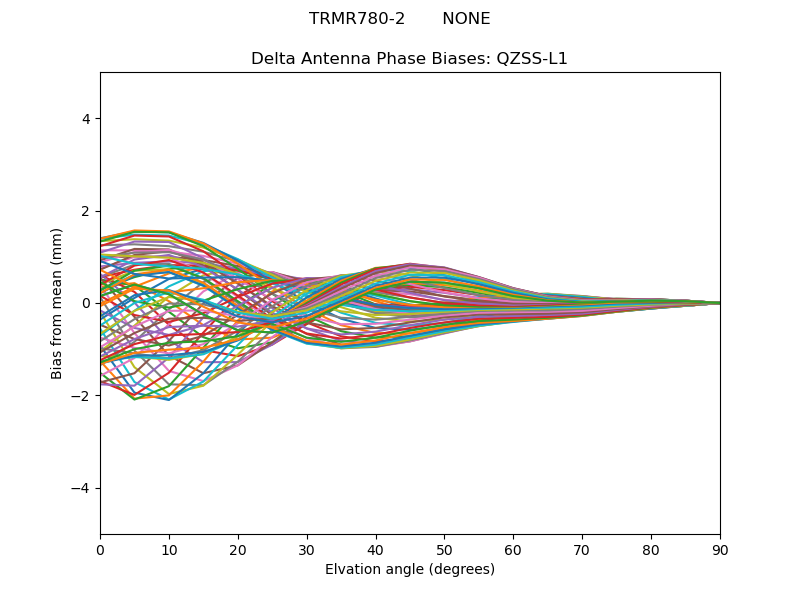

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

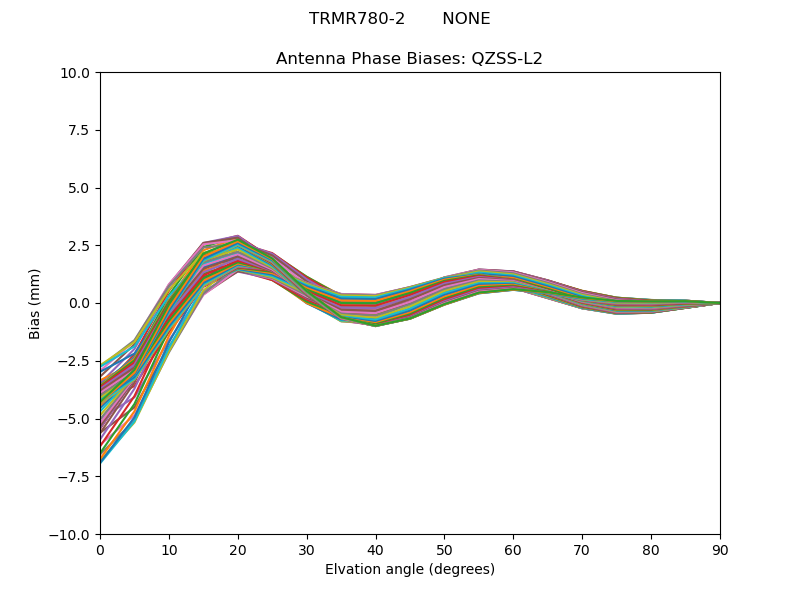

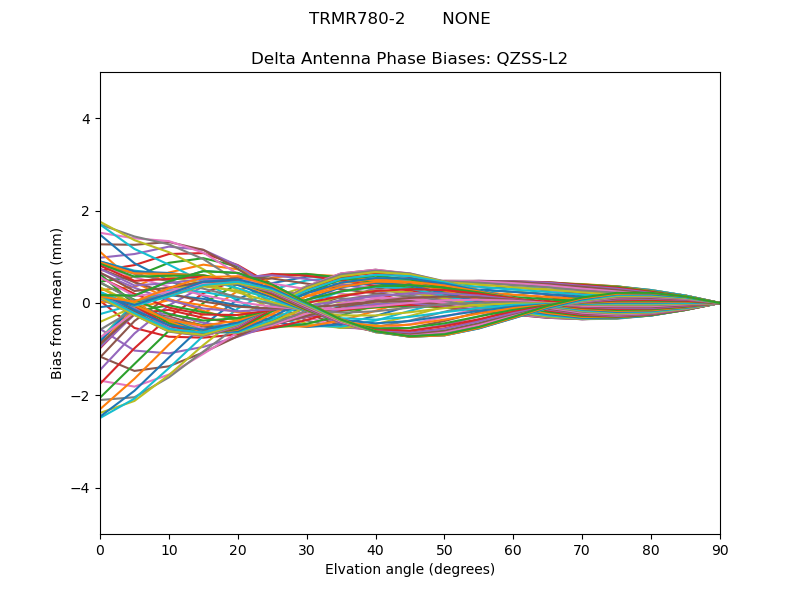

QZSS-L2

QZSS-L2QZSS-L2

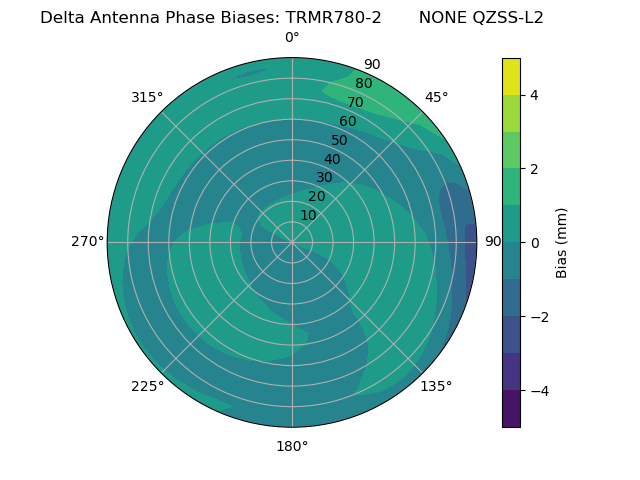

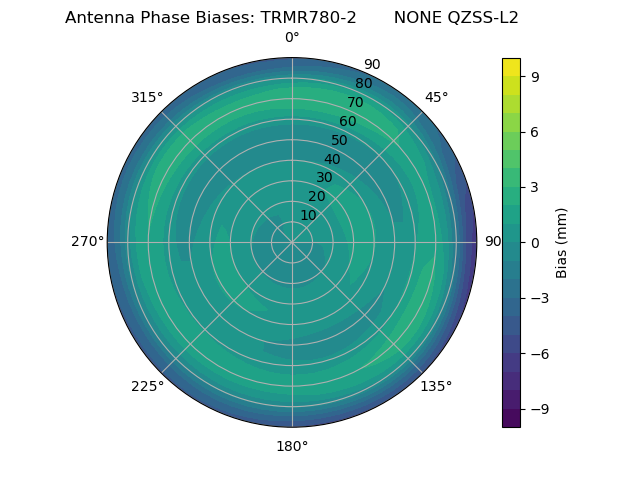

Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5
Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1
Radial SBAS-L1Radial SBAS-L1

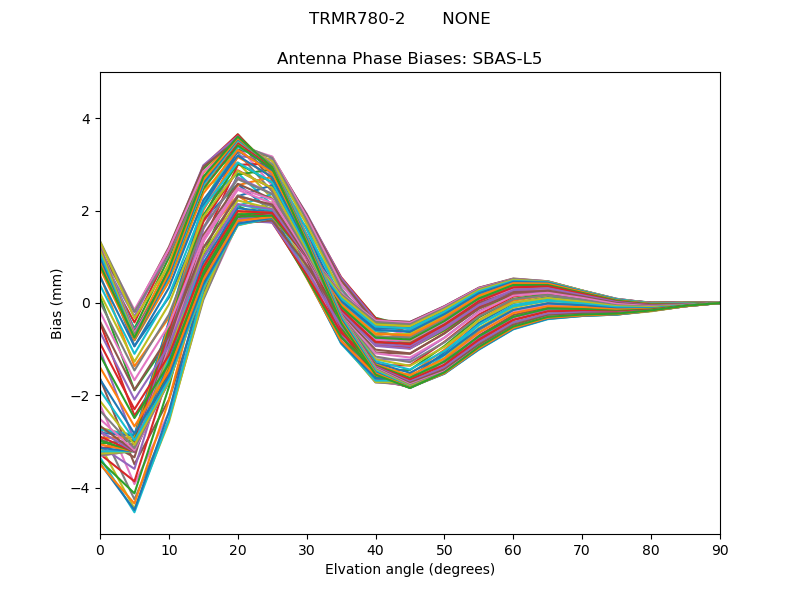

SBAS-L5

SBAS-L5SBAS-L5
Radial SBAS-L5Radial SBAS-L5
