Antenna information for TRMR780 NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 0.46 E: -0.51 U: 124.83
L2: N: 1.50 E: -0.82 U: 115.69
L5: N: 1.27 E: -0.66 U: 111.55

GLONASS

L1: N: 0.45 E: -0.38 U: 123.99
L2: N: 1.35 E: -0.80 U: 117.11

GALILEO

E1: N: 0.46 E: -0.51 U: 124.83
E5a: N: 1.27 E: -0.66 U: 111.55
E5b: N: 1.52 E: -0.80 U: 114.03
E5: N: 1.44 E: -0.74 U: 112.80
E6: N: 0.80 E: -0.66 U: 119.47

BeiDou

E1: N: 0.46 E: -0.51 U: 124.83
E2: N: 0.47 E: -0.59 U: 125.23
E5b: N: 1.52 E: -0.80 U: 114.03
E6: N: 1.01 E: -0.71 U: 118.69

QZSS

L1: N: 0.46 E: -0.51 U: 124.83
L2: N: 1.50 E: -0.82 U: 115.69
L5: N: 1.27 E: -0.66 U: 111.55
LEX: N: 0.80 E: -0.66 U: 119.47

SBAS

L1: N: 0.46 E: -0.51 U: 124.83
L5: N: 1.27 E: -0.66 U: 111.55

L1

GPS: N: 0.46 E: -0.51 U: 124.83
GLONASS: N: 0.45 E: -0.38 U: 123.99
QZSS: N: 0.46 E: -0.51 U: 124.83
SBAS: N: 0.46 E: -0.51 U: 124.83

L2

GPS: N: 1.50 E: -0.82 U: 115.69
GLONASS: N: 1.35 E: -0.80 U: 117.11
QZSS: N: 1.50 E: -0.82 U: 115.69

L5

GPS: N: 1.27 E: -0.66 U: 111.55
QZSS: N: 1.27 E: -0.66 U: 111.55
SBAS: N: 1.27 E: -0.66 U: 111.55

E1

GALILEO: N: 0.46 E: -0.51 U: 124.83
BeiDou: N: 0.46 E: -0.51 U: 124.83

E2

BeiDou: N: 0.47 E: -0.59 U: 125.23

E5

GALILEO: N: 1.44 E: -0.74 U: 112.80

E5a

GALILEO: N: 1.27 E: -0.66 U: 111.55

E5b

GALILEO: N: 1.52 E: -0.80 U: 114.03
BeiDou: N: 1.52 E: -0.80 U: 114.03

E6

GALILEO: N: 0.80 E: -0.66 U: 119.47
BeiDou: N: 1.01 E: -0.71 U: 118.69

LEX

QZSS: N: 0.80 E: -0.66 U: 119.47


Means

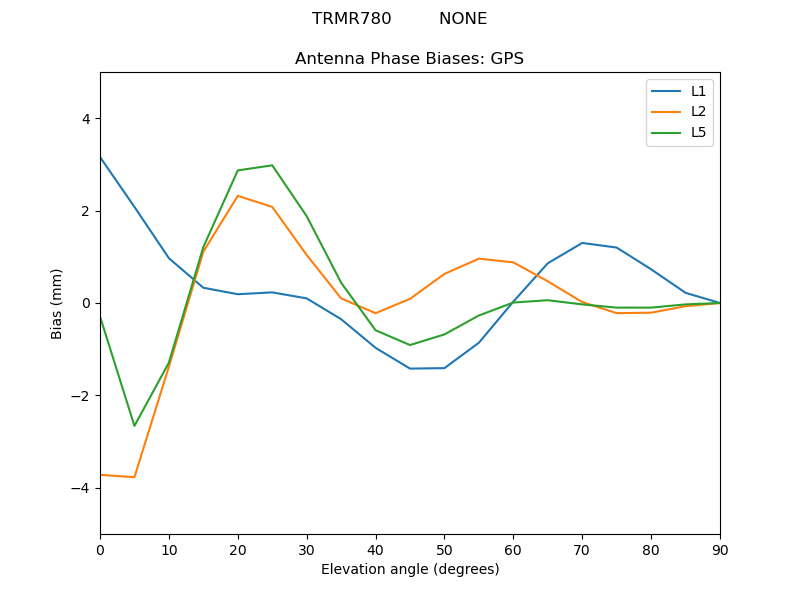

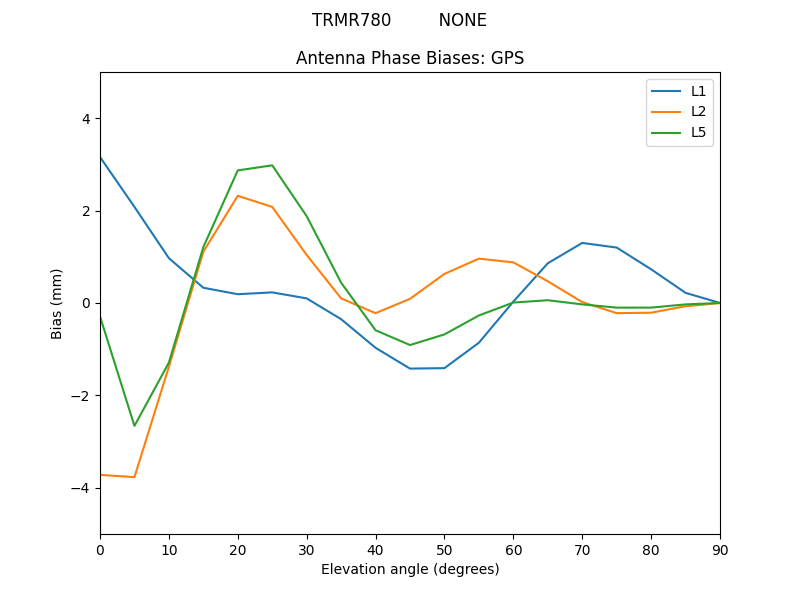

GPS

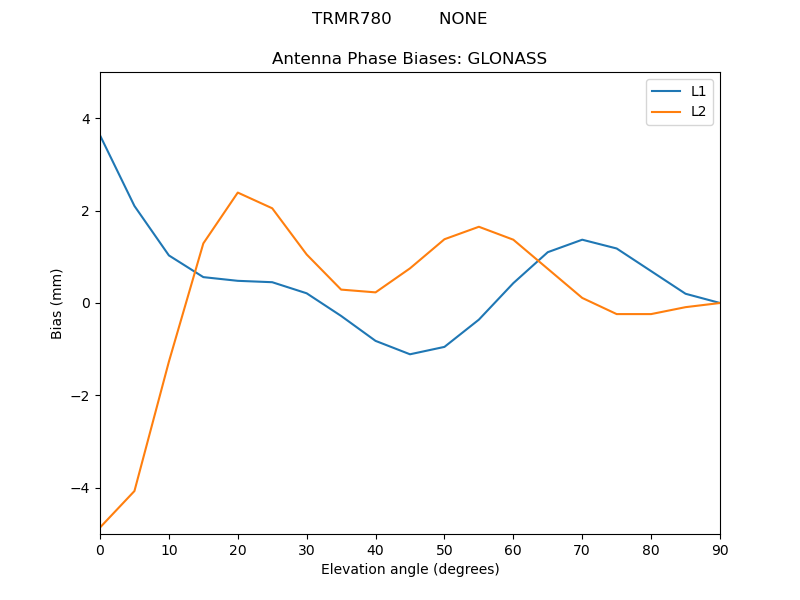

GLONASS

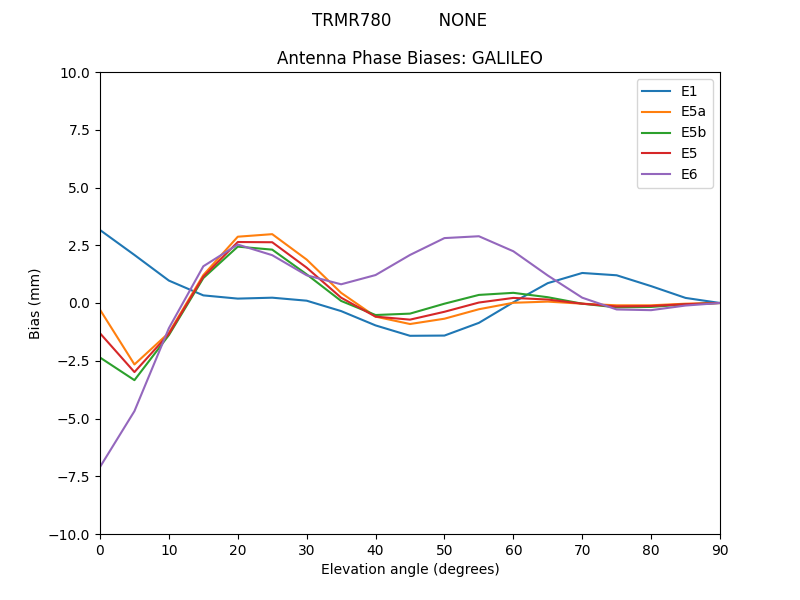

GALILEO

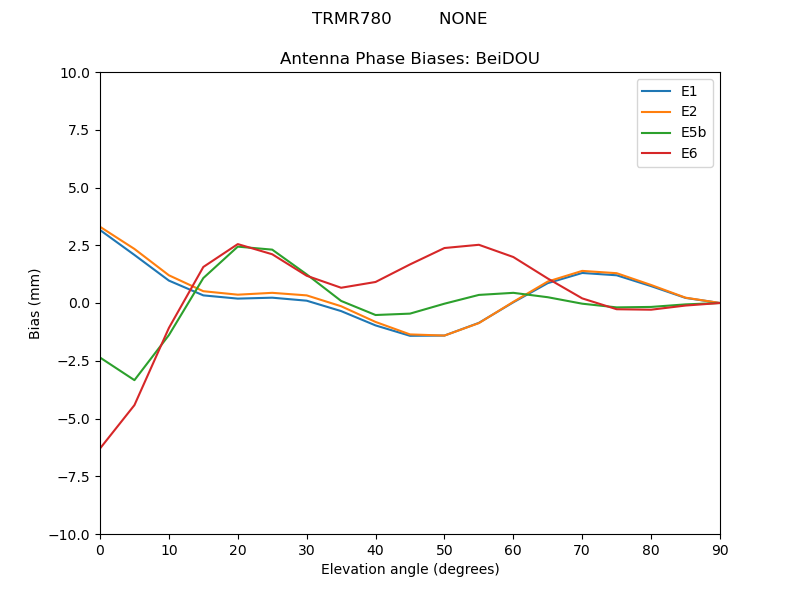

BeiDOU

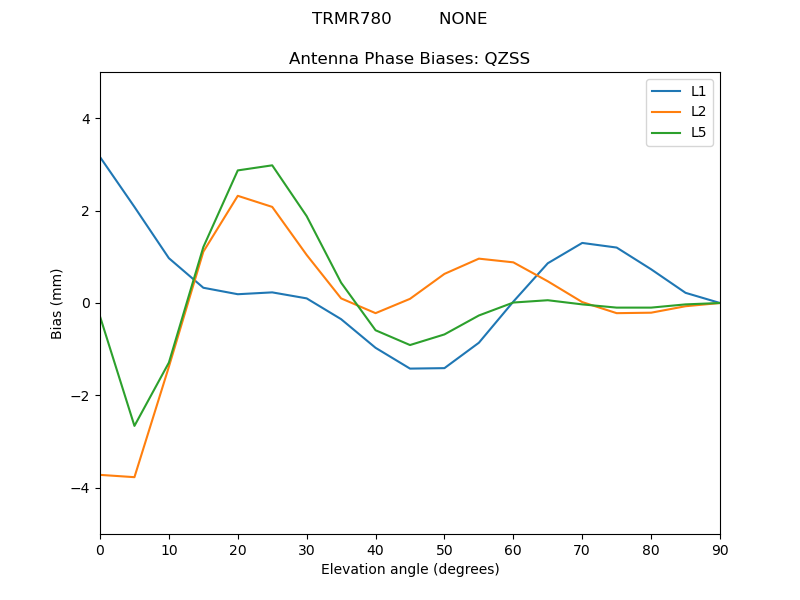

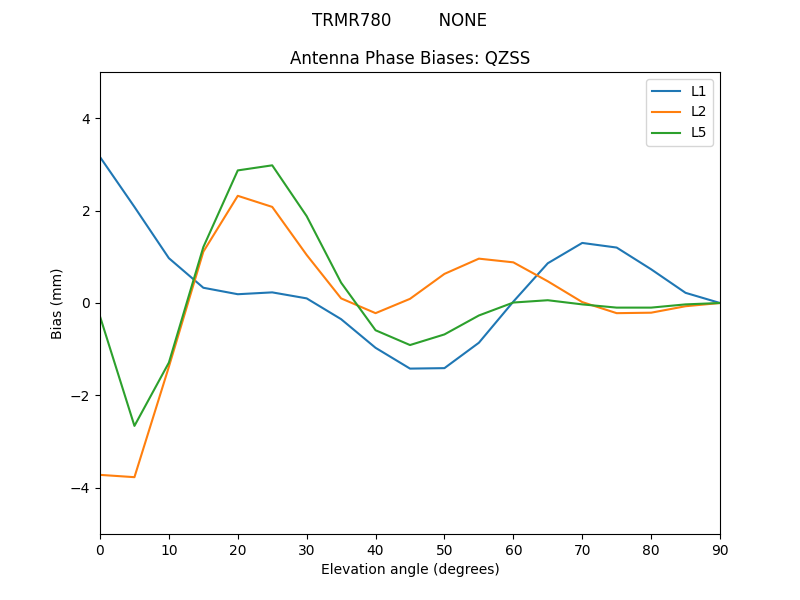

QZSS

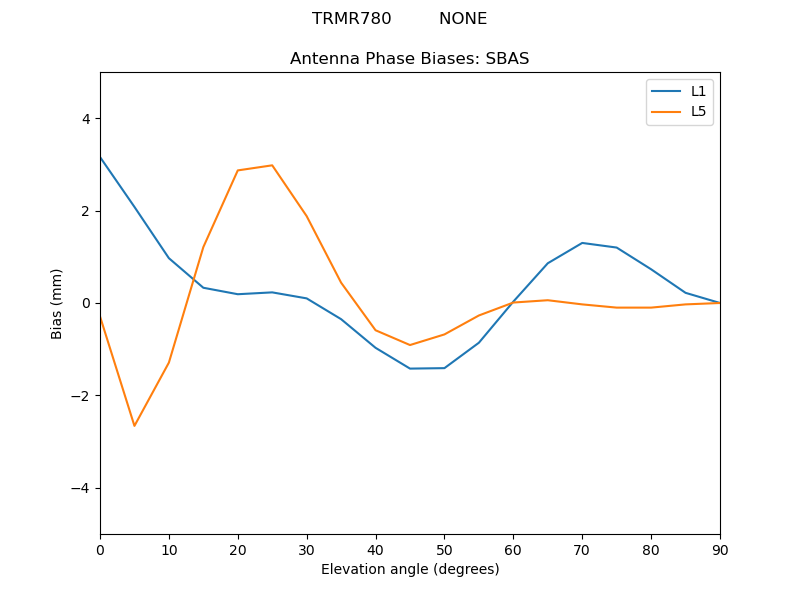

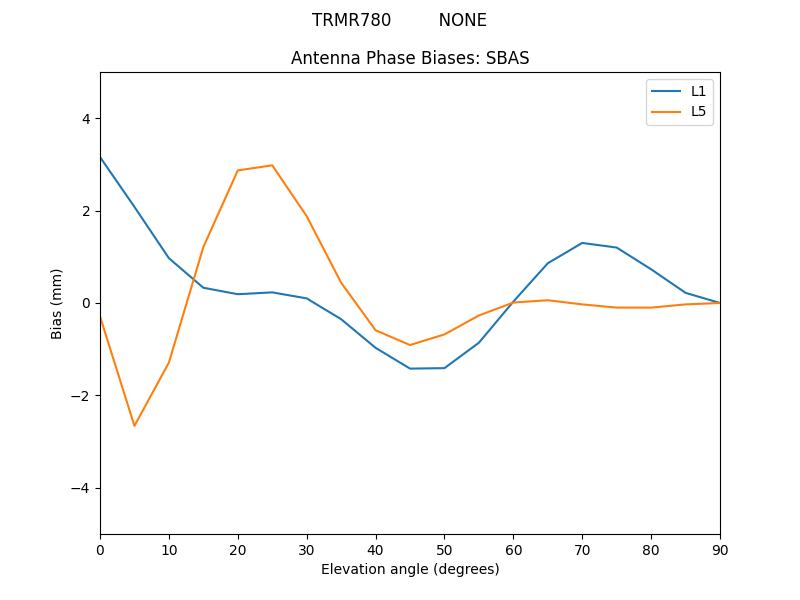

SBAS


Azimuths

GPS


Bias Delta

GPS-L1

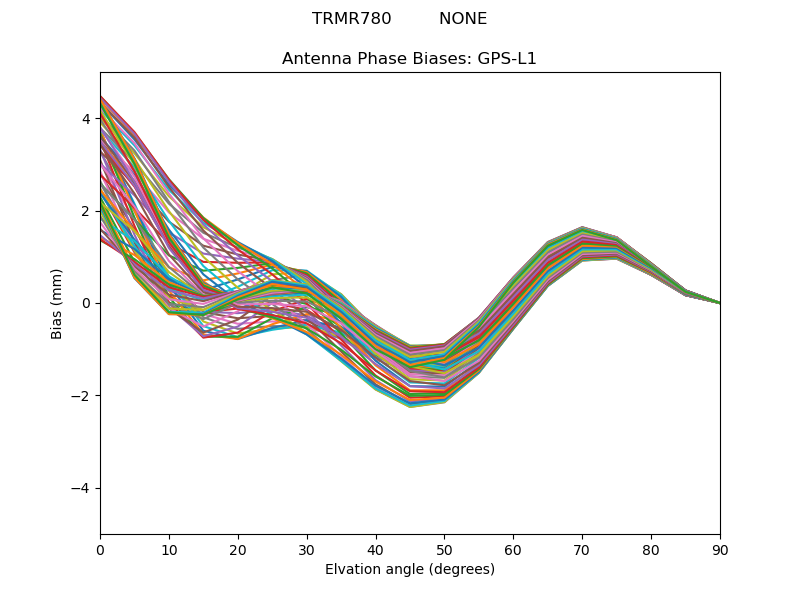

GPS-L1GPS-L1

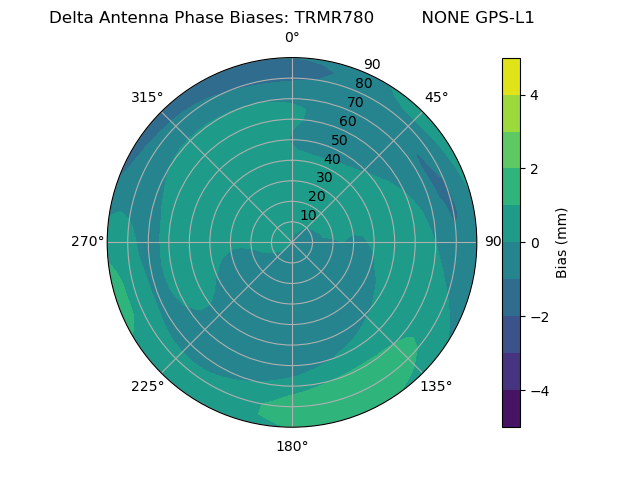

Radial GPS-L1Radial GPS-L1

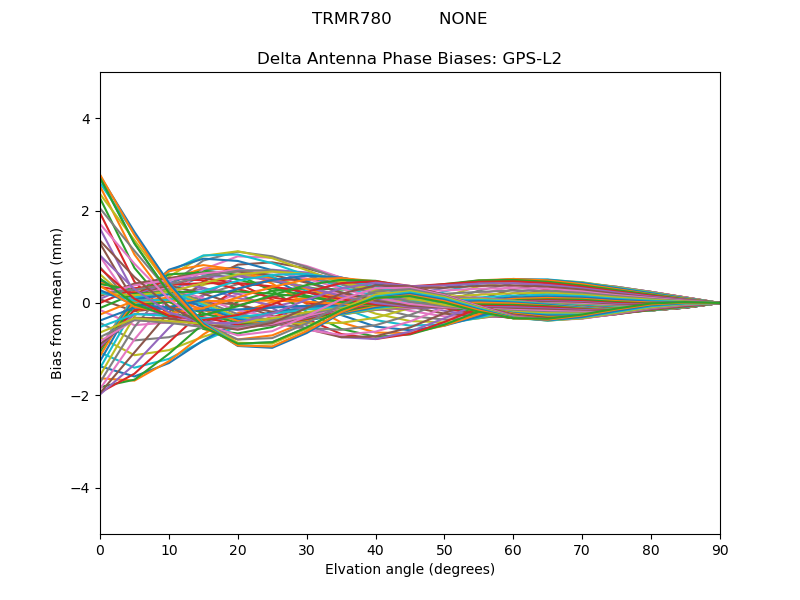

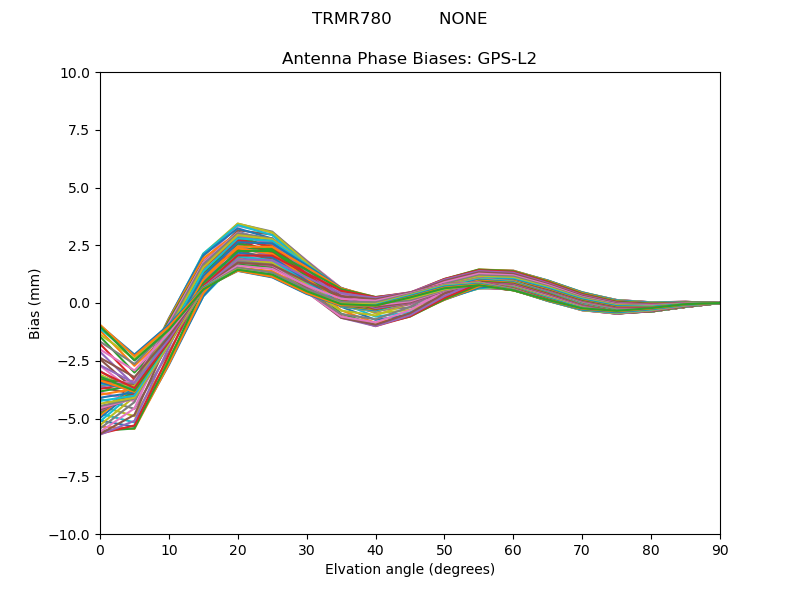

GPS-L2

GPS-L2GPS-L2

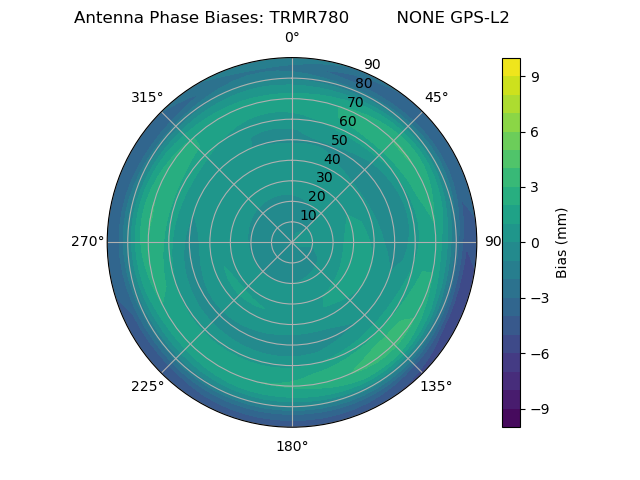

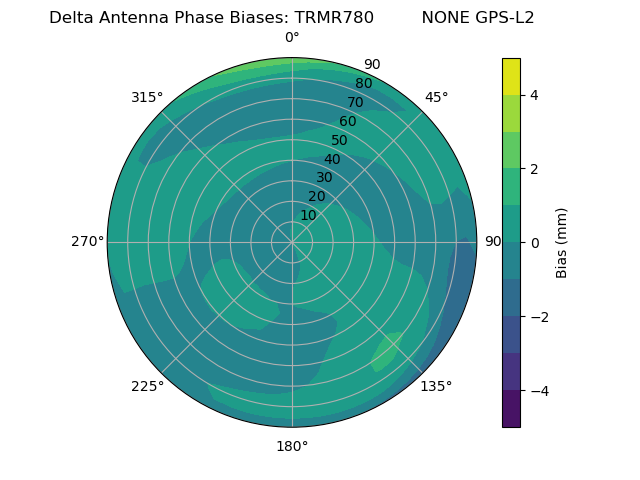

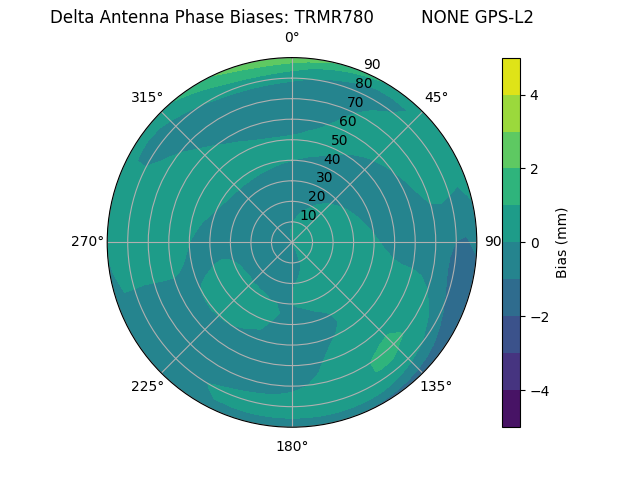

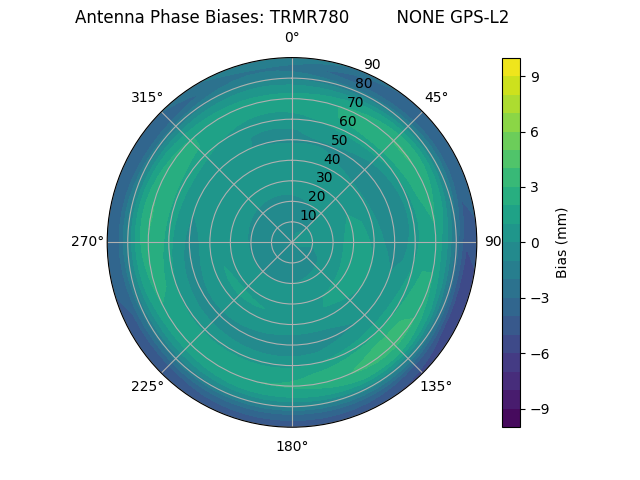

Radial GPS-L2Radial GPS-L2

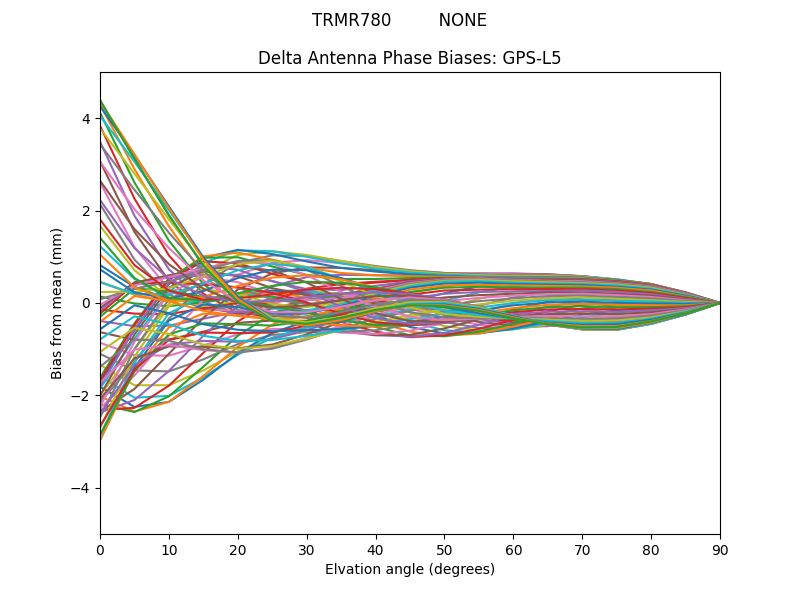

GPS-L5

GPS-L5GPS-L5

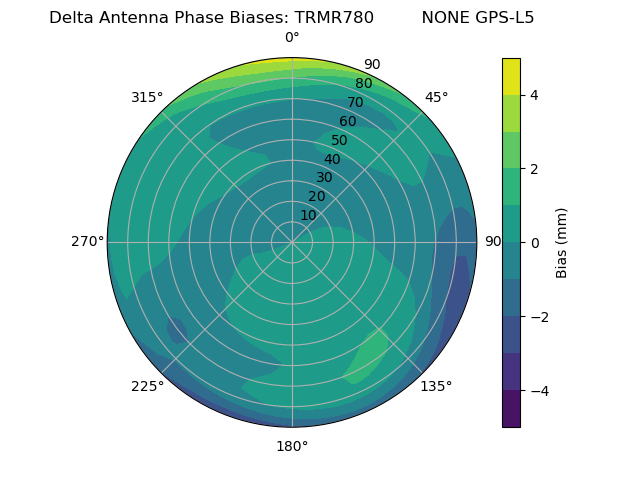

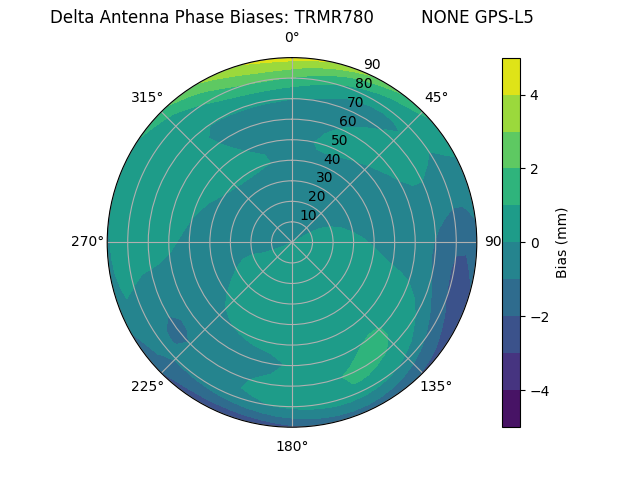

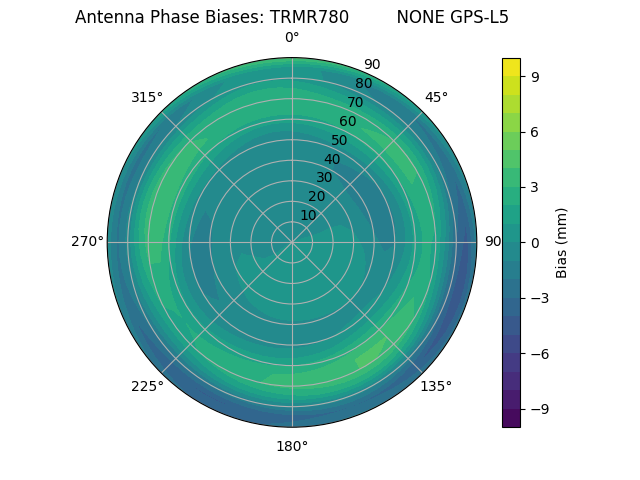

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

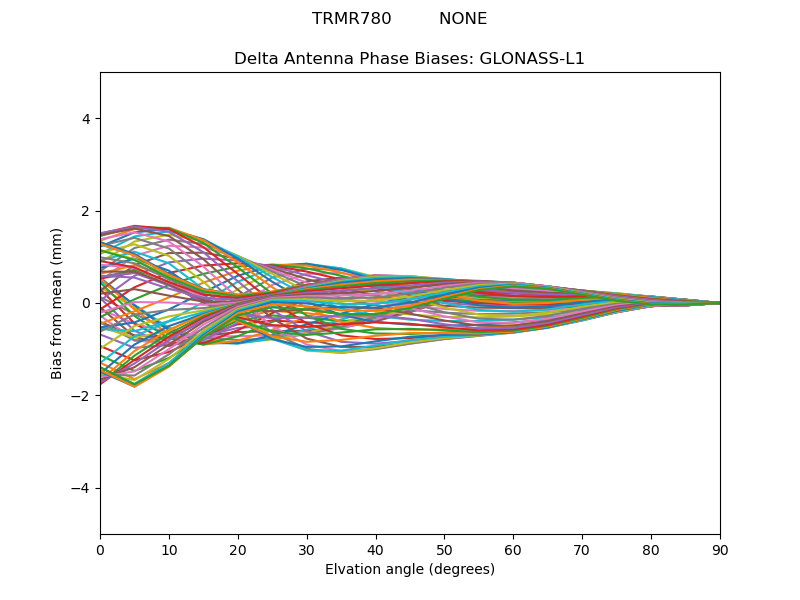

GLONASS-L1

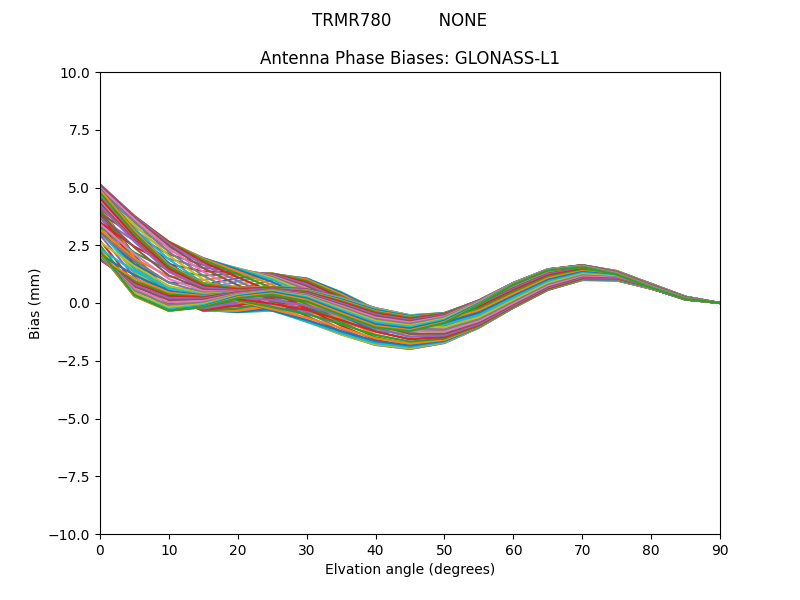

GLONASS-L1GLONASS-L1

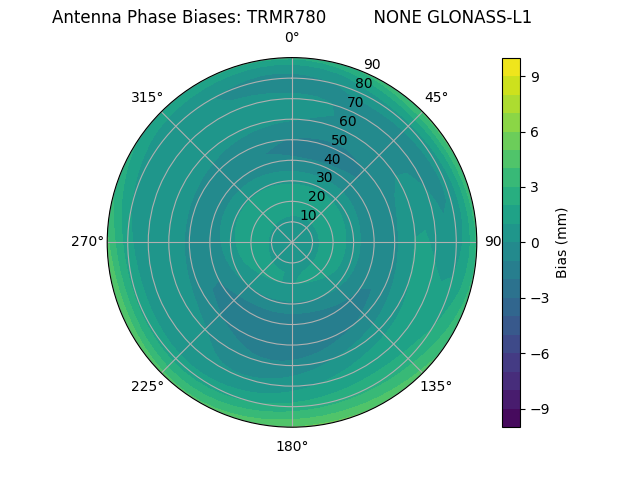

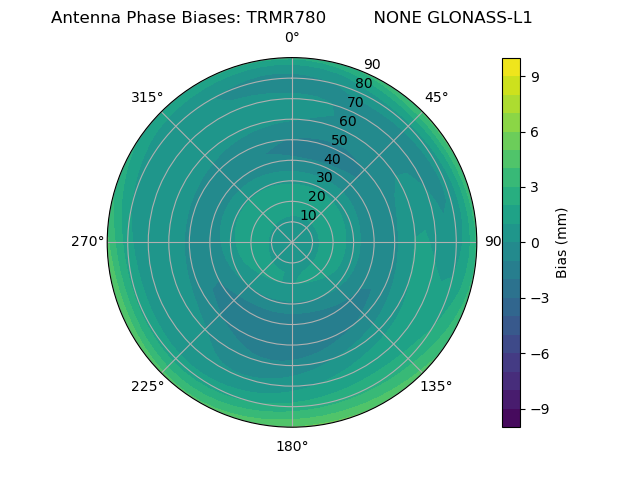

Radial GLONASS-L1Radial GLONASS-L1

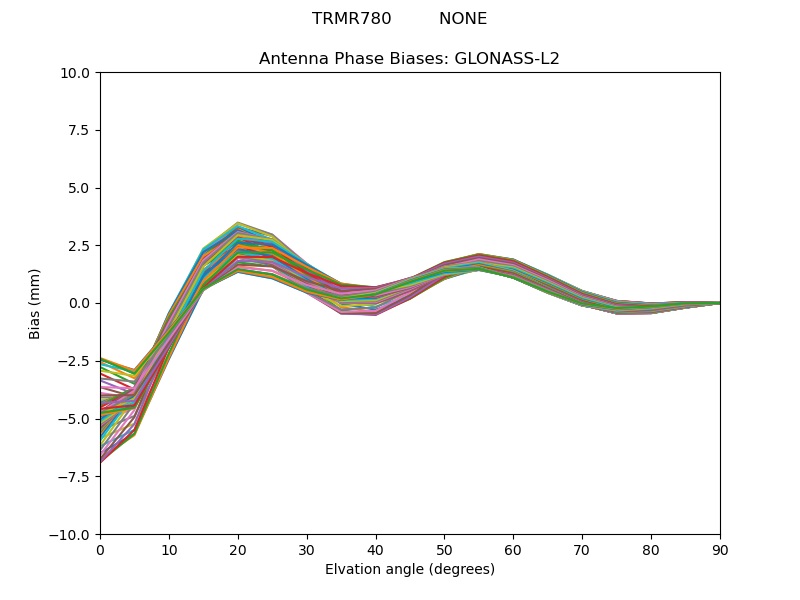

GLONASS-L2

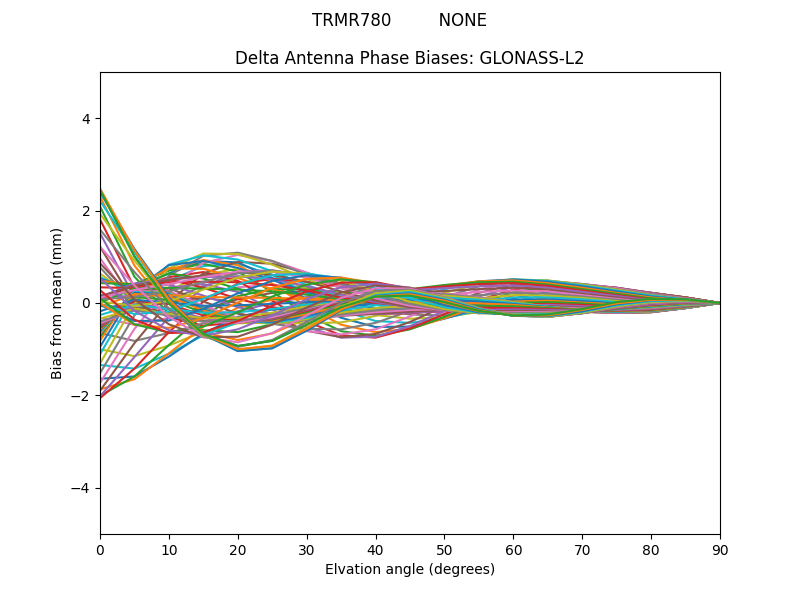

GLONASS-L2GLONASS-L2

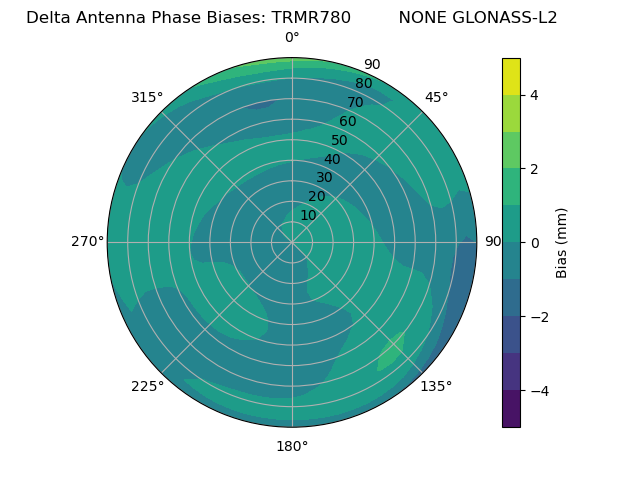

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

GALILEO-E1GALILEO-E1

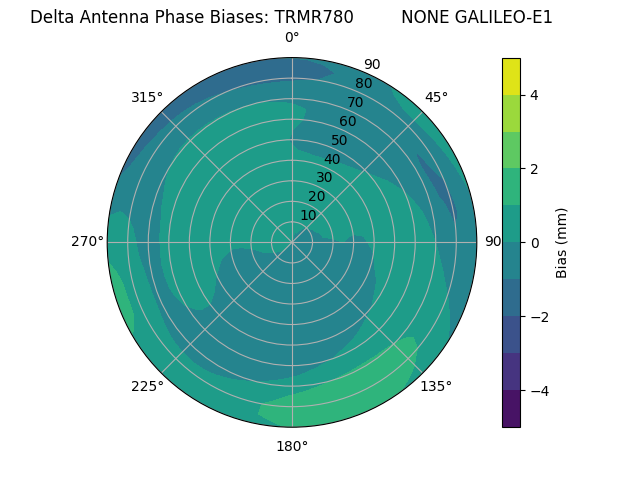

Radial GALILEO-E1Radial GALILEO-E1

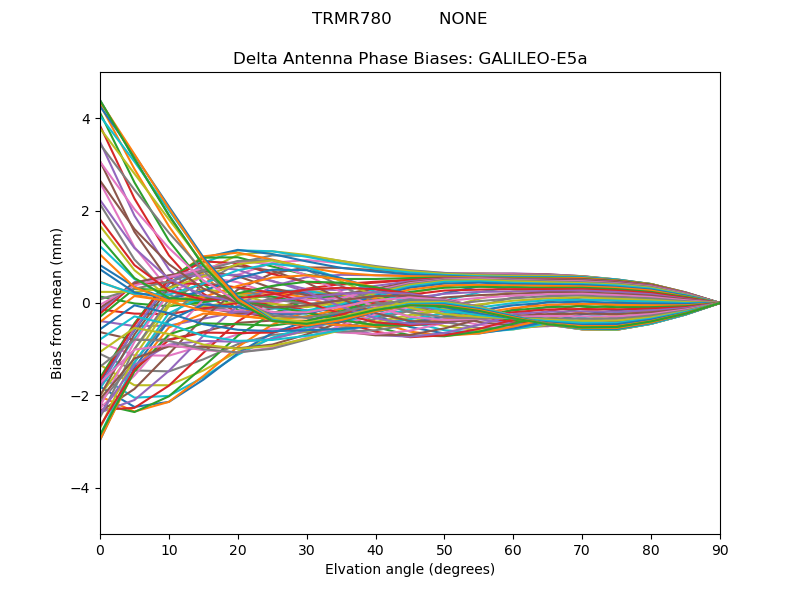

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

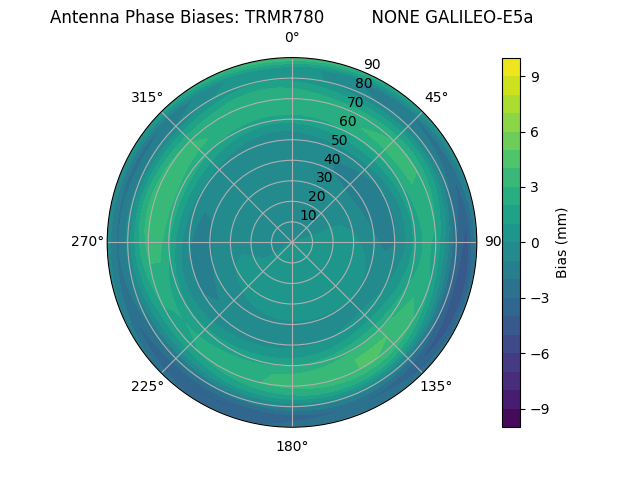

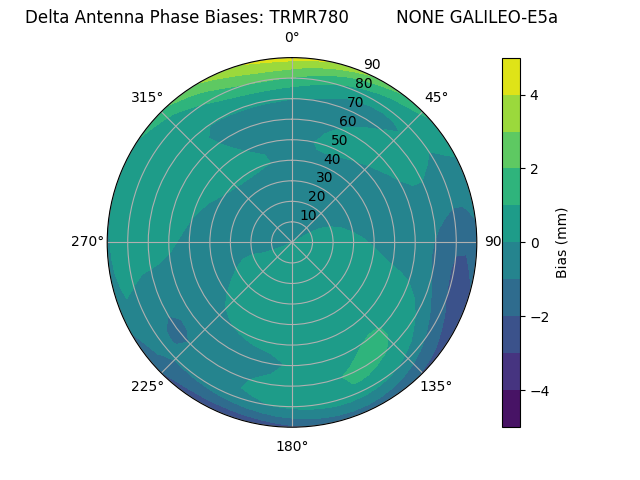

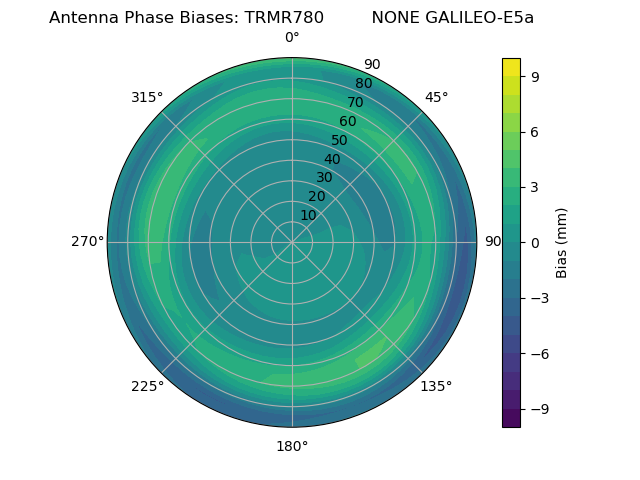

Radial GALILEO-E5aRadial GALILEO-E5a

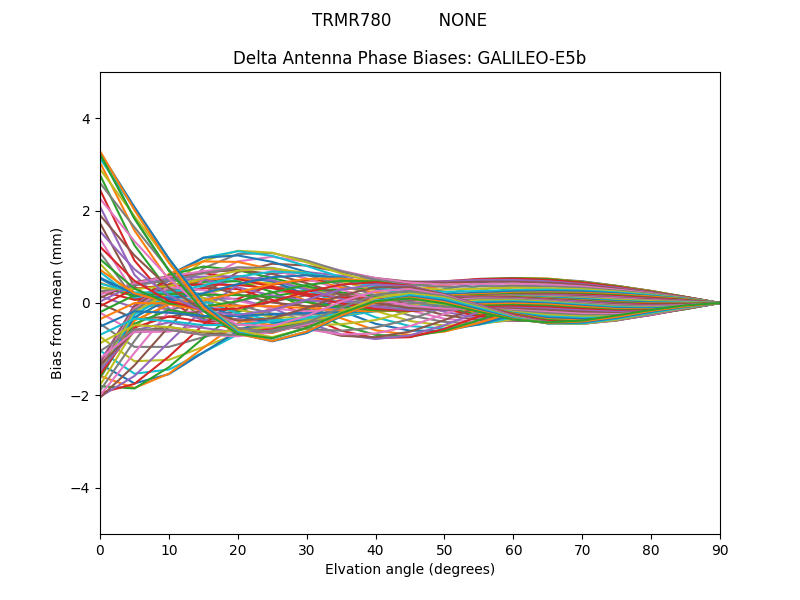

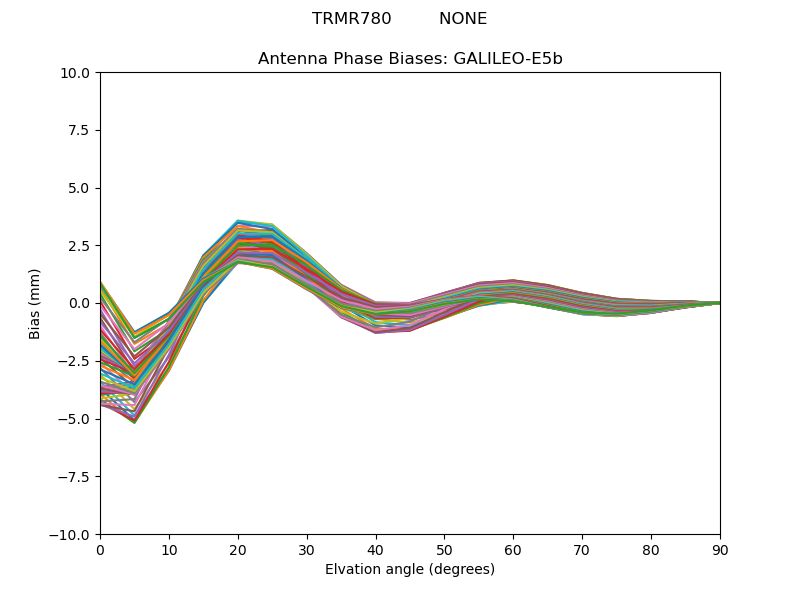

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

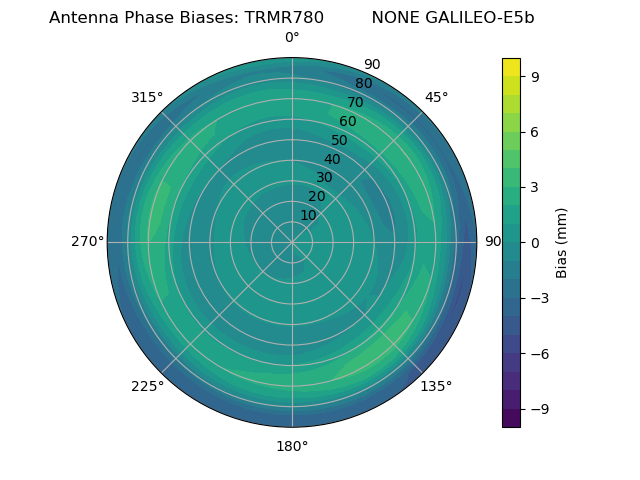

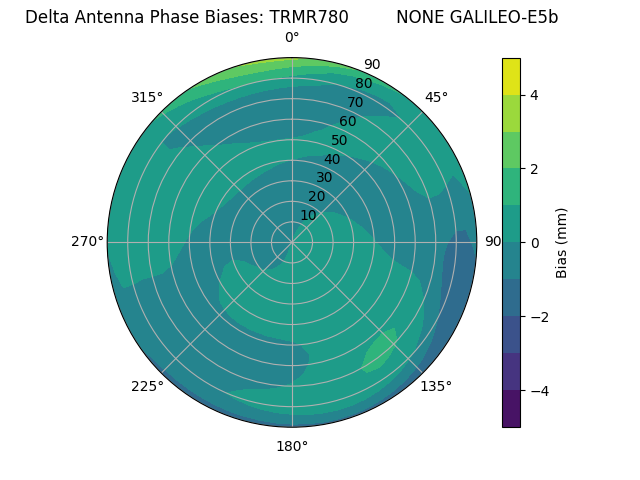

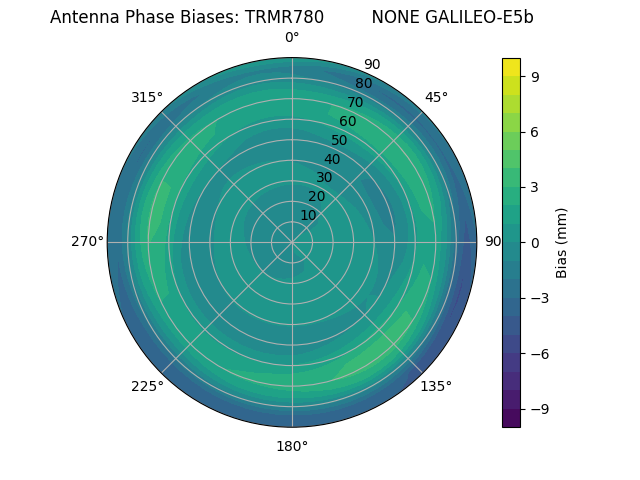

Radial GALILEO-E5bRadial GALILEO-E5b

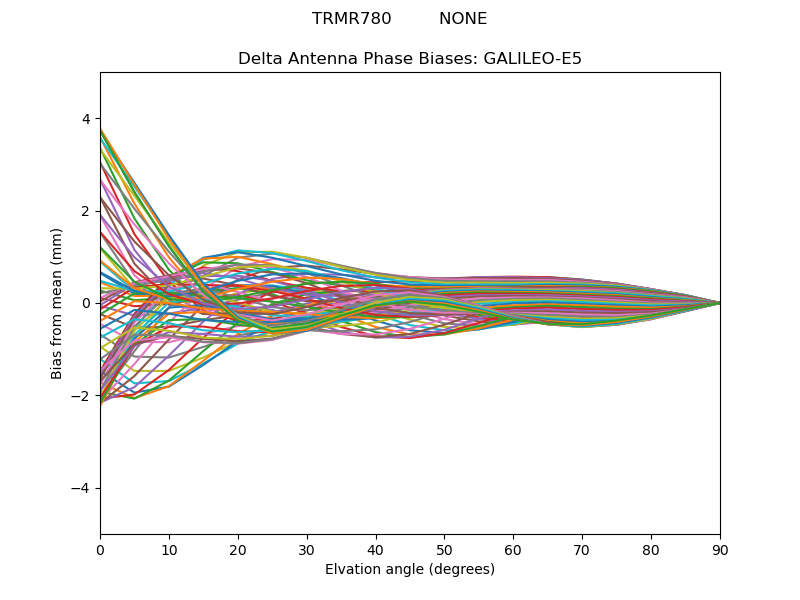

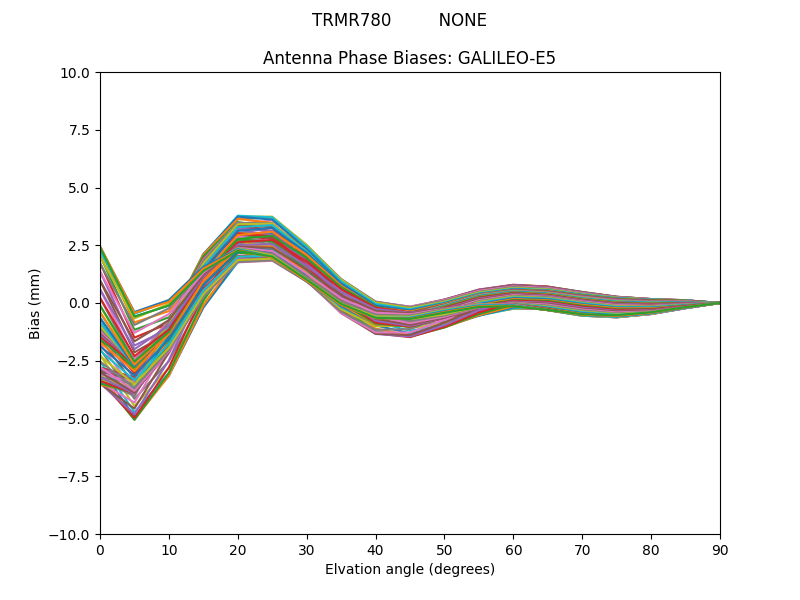

GALILEO-E5

GALILEO-E5GALILEO-E5

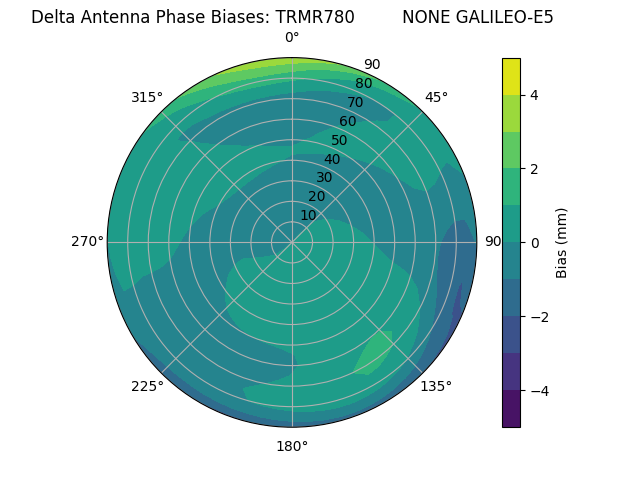

Radial GALILEO-E5Radial GALILEO-E5

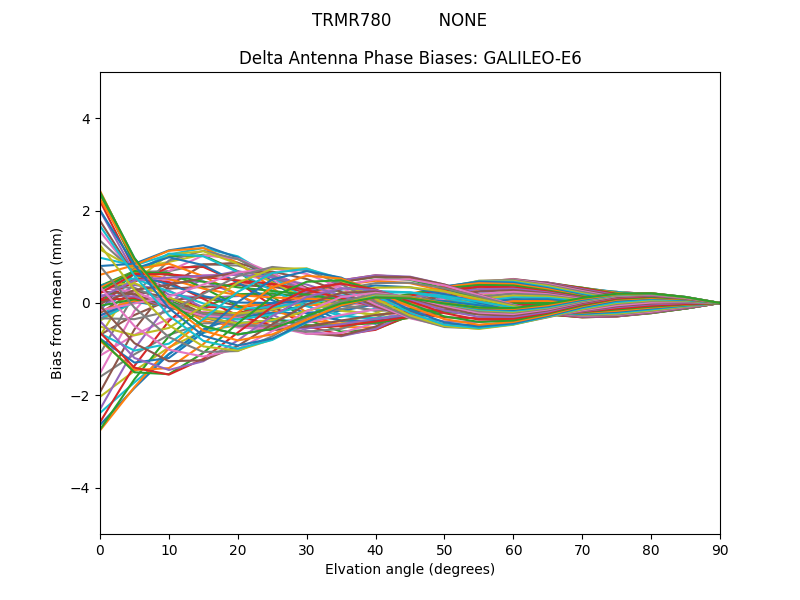

GALILEO-E6

GALILEO-E6GALILEO-E6

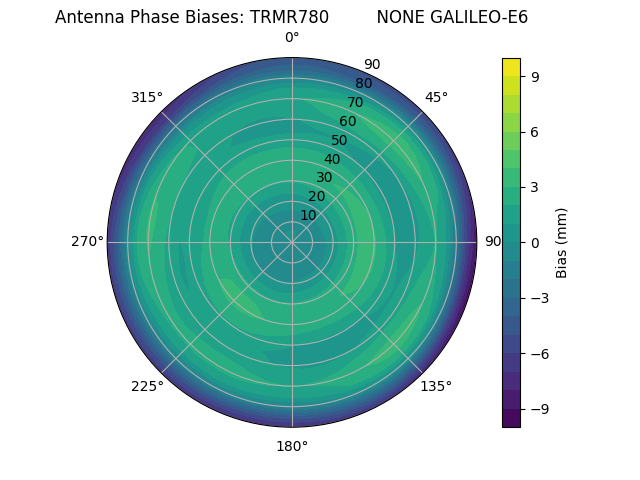

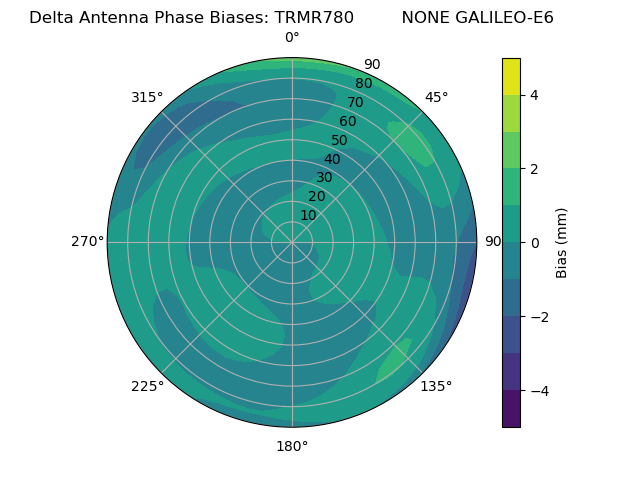

Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

BeiDOU-E1

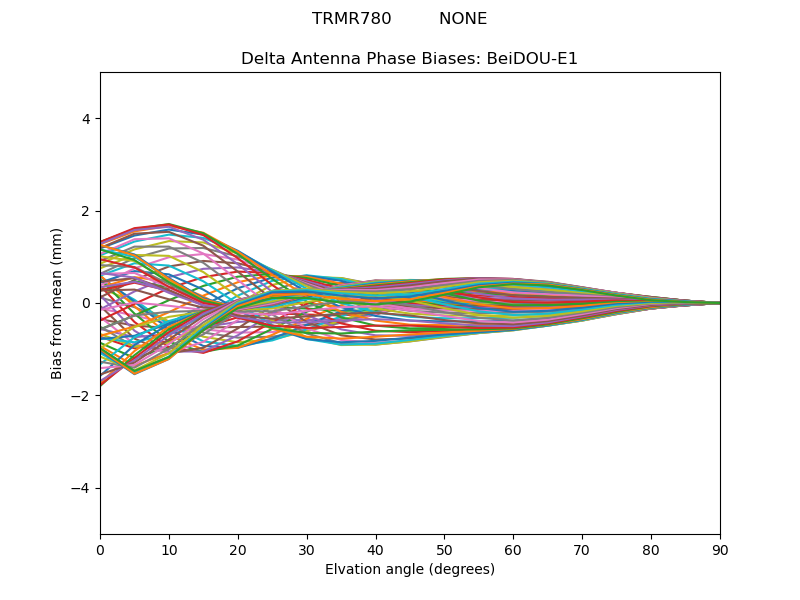

BeiDOU-E1BeiDOU-E1

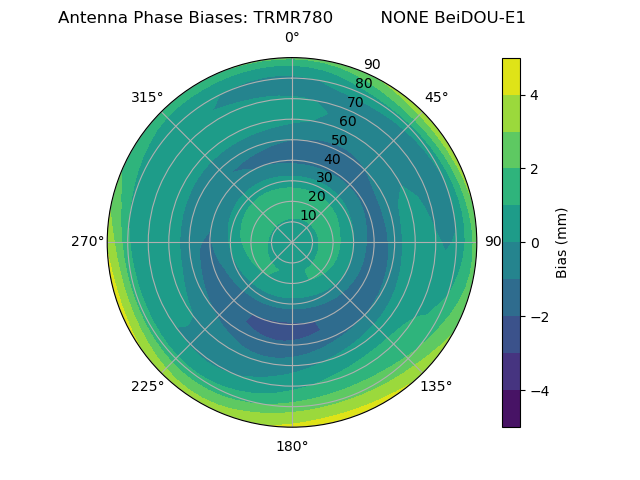

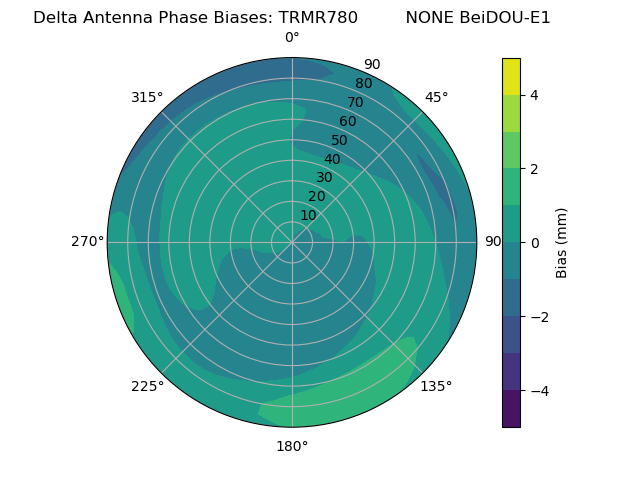

Radial BeiDOU-E1Radial BeiDOU-E1

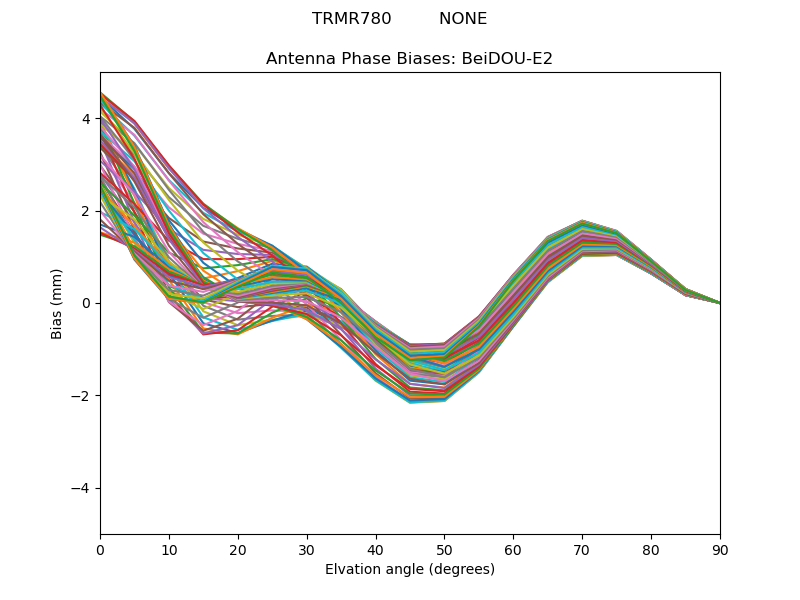

BeiDOU-E2

BeiDOU-E2BeiDOU-E2
Radial BeiDOU-E2Radial BeiDOU-E2

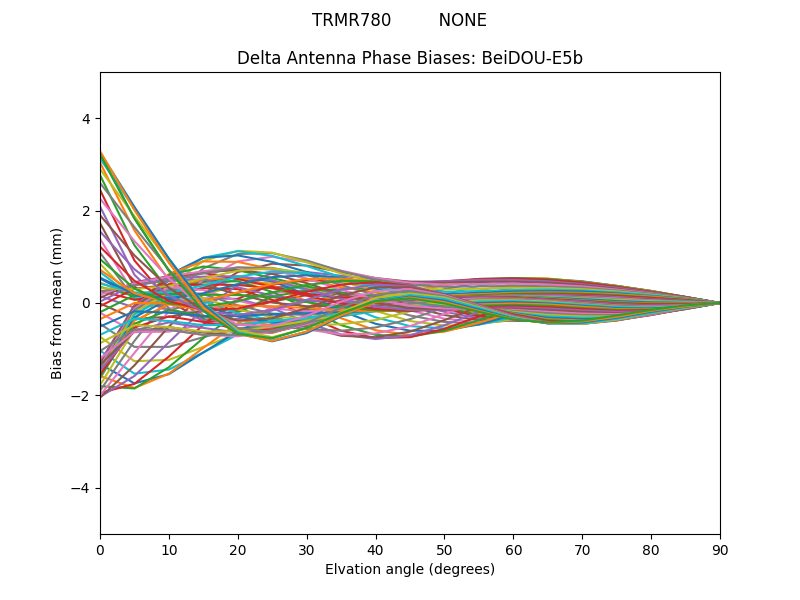

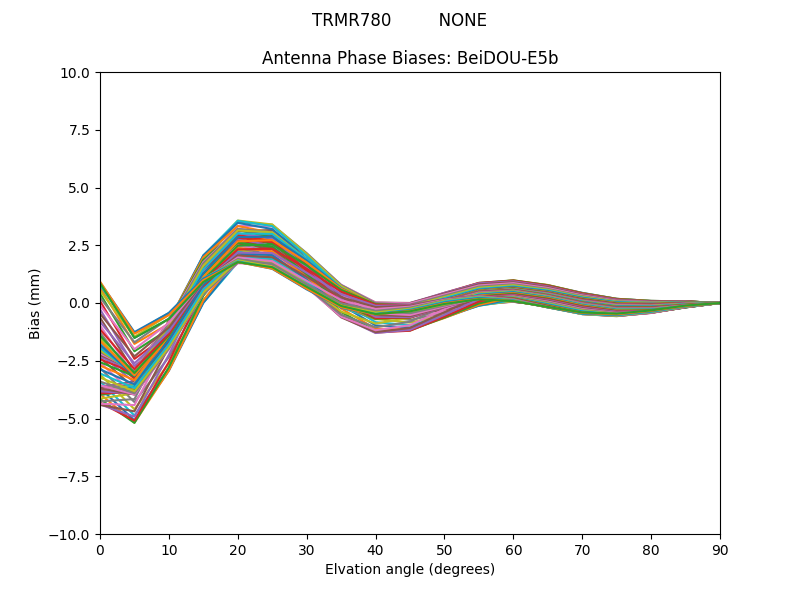

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

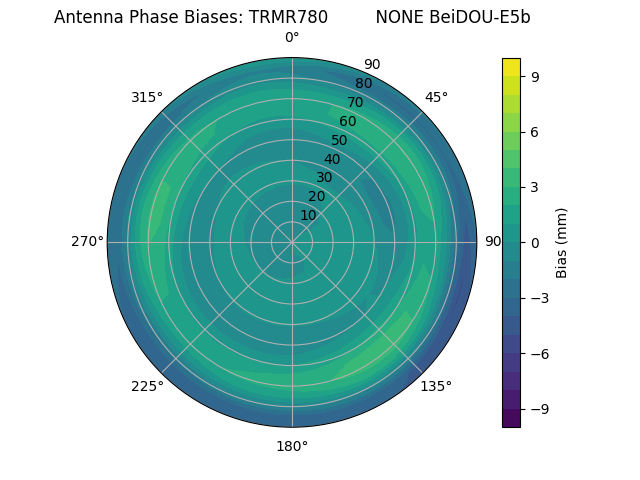

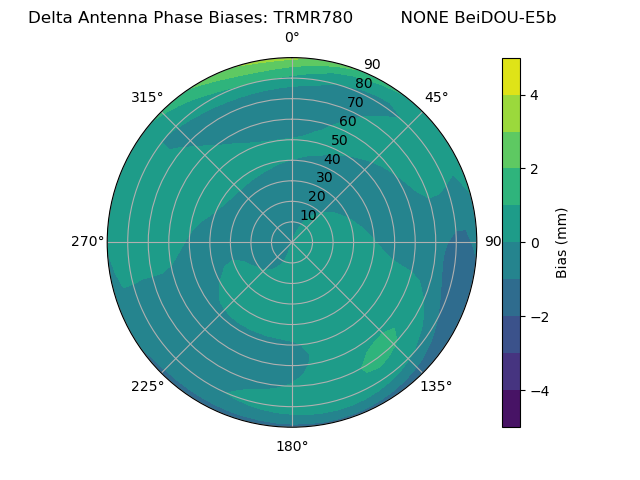

Radial BeiDOU-E5bRadial BeiDOU-E5b

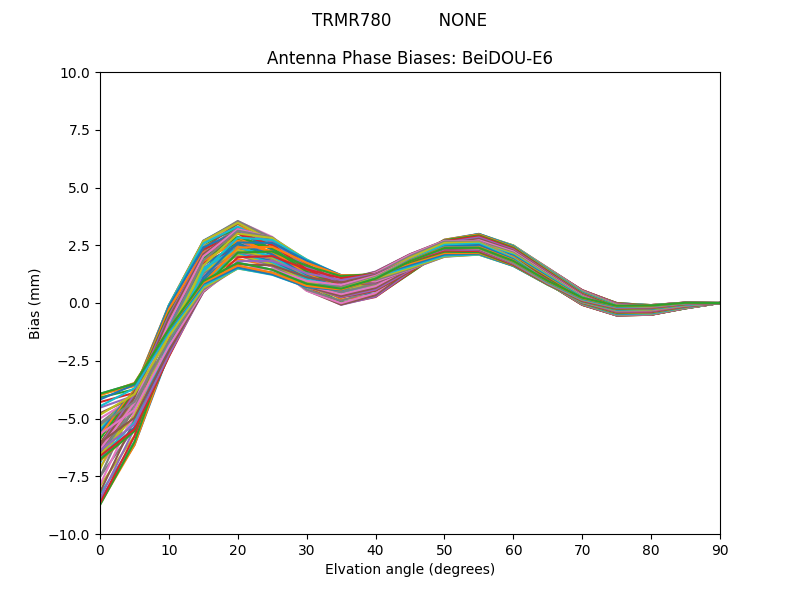

BeiDOU-E6

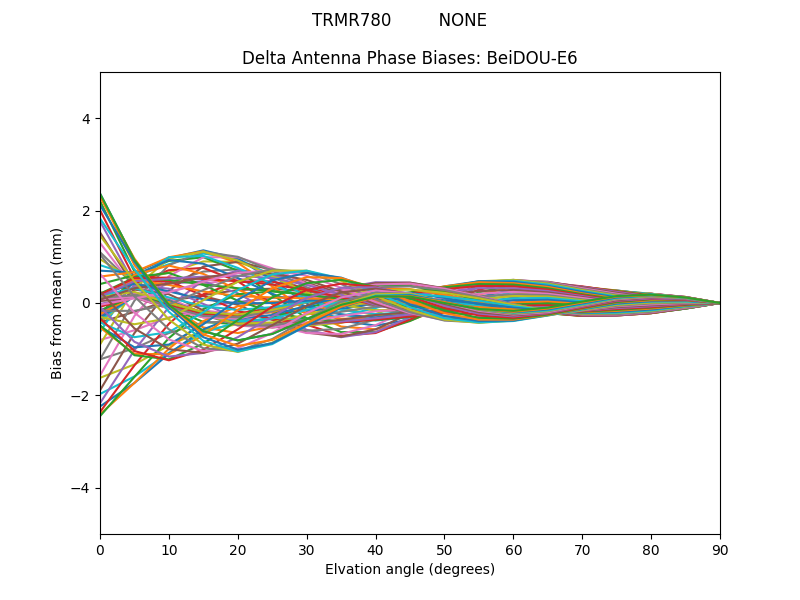

BeiDOU-E6BeiDOU-E6

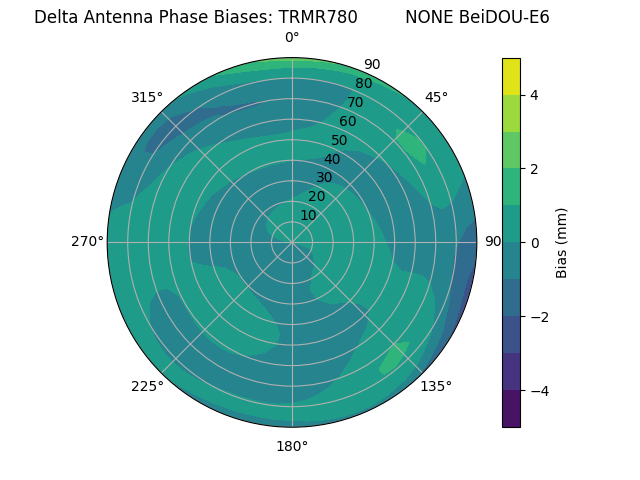

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

QZSS-L1

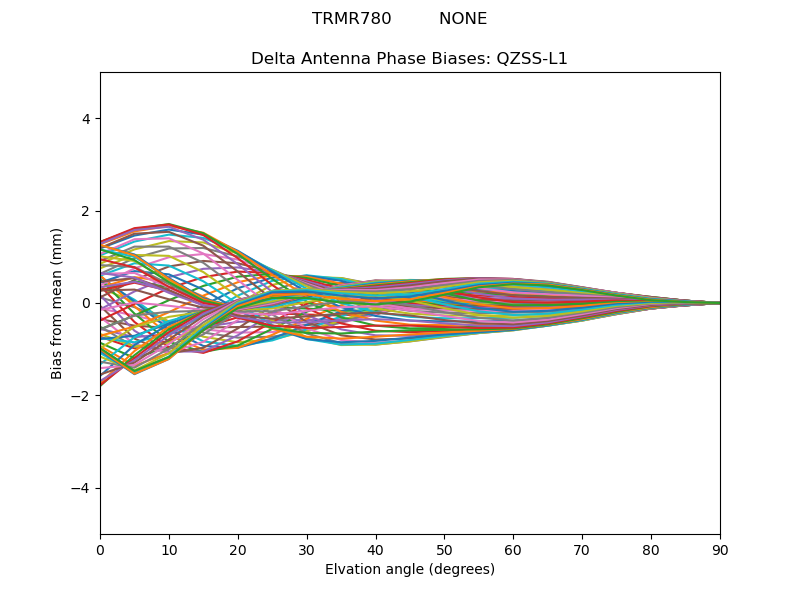

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

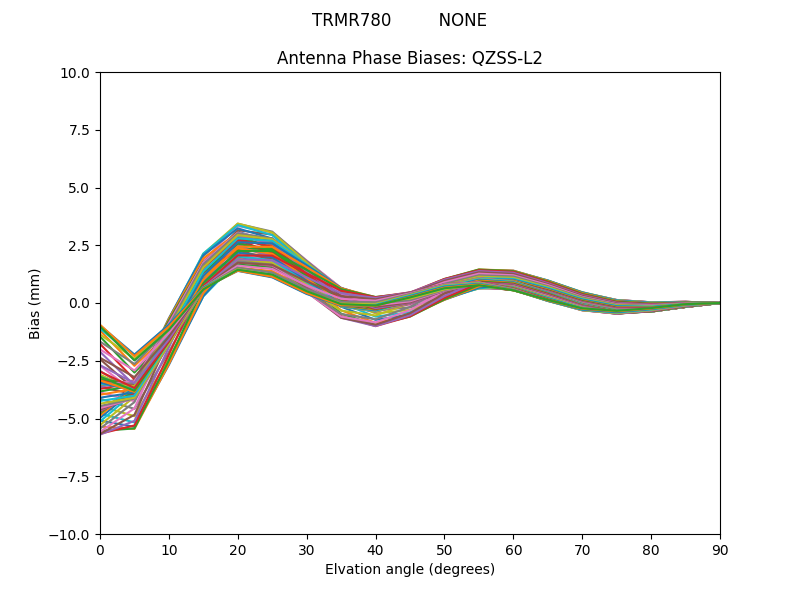

QZSS-L2

QZSS-L2QZSS-L2

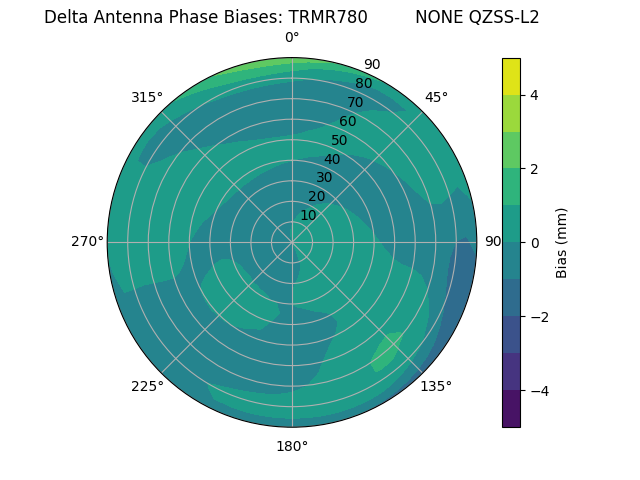

Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5

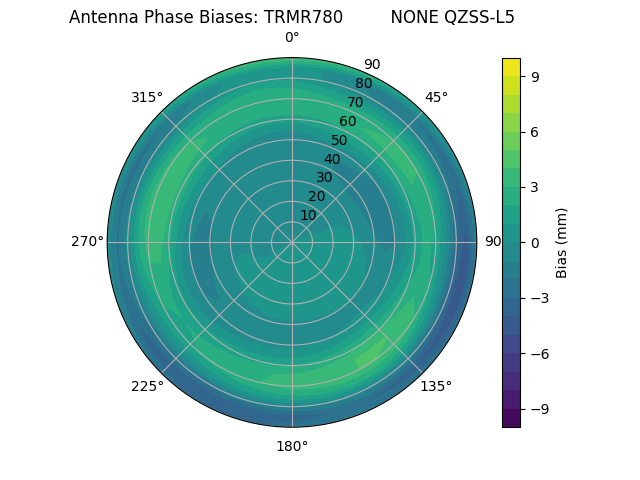

Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1
Radial SBAS-L1Radial SBAS-L1

SBAS-L5

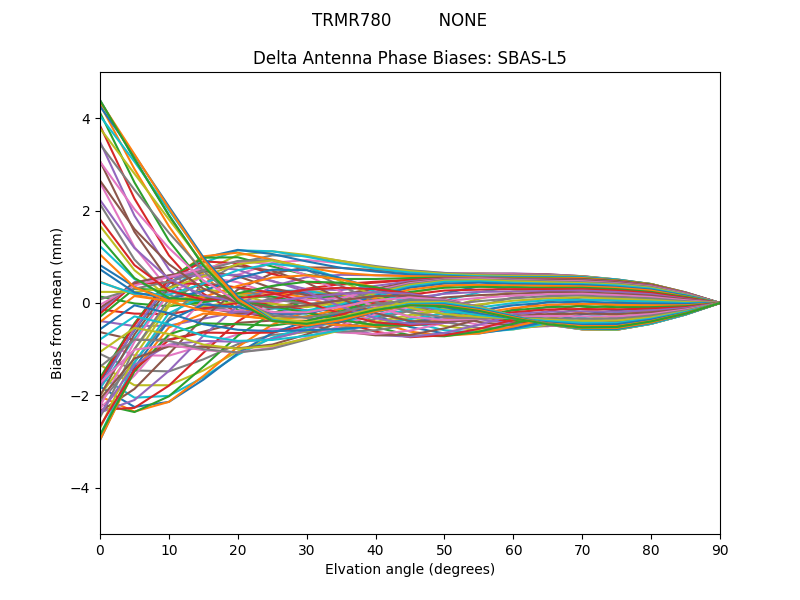

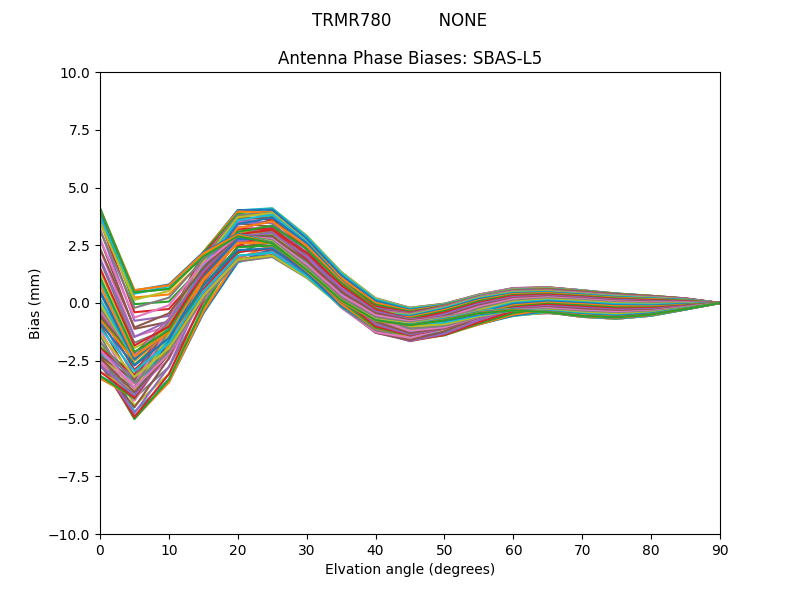

SBAS-L5SBAS-L5
Radial SBAS-L5Radial SBAS-L5
