Antenna information for TWIVP6050_CONE NONE

Antenna Offsets
SV System Bands

GPS

L1: N: -0.49 E: -0.09 U: 102.20
L2: N: 0.06 E: -0.28 U: 100.51
L5: N: 0.06 E: -0.72 U: 100.29

GLONASS

L1: N: -0.44 E: 0.22 U: 102.24
L2: N: 0.01 E: -0.32 U: 101.26

GALILEO

E1: N: -0.49 E: -0.09 U: 102.20
E5a: N: 0.06 E: -0.72 U: 100.29
E5b: N: 0.08 E: -0.36 U: 100.09
E5: N: 0.08 E: -0.50 U: 100.06
E6: N: -0.13 E: -0.65 U: 103.41

BeiDou

E1: N: -0.49 E: -0.09 U: 102.20
E2: N: -0.52 E: -0.27 U: 102.16
E5b: N: 0.08 E: -0.36 U: 100.09
E6: N: -0.08 E: -0.51 U: 102.63

QZSS

L1: N: -0.49 E: -0.09 U: 102.20
L2: N: 0.06 E: -0.28 U: 100.51
L5: N: 0.06 E: -0.72 U: 100.29
LEX: N: -0.13 E: -0.65 U: 103.41

IRNSS

L5: N: 0.06 E: -0.72 U: 100.29

SBAS

L1: N: -0.49 E: -0.09 U: 102.20
L5: N: 0.06 E: -0.72 U: 100.29

L1

GPS: N: -0.49 E: -0.09 U: 102.20
GLONASS: N: -0.44 E: 0.22 U: 102.24
QZSS: N: -0.49 E: -0.09 U: 102.20
SBAS: N: -0.49 E: -0.09 U: 102.20

L2

GPS: N: 0.06 E: -0.28 U: 100.51
GLONASS: N: 0.01 E: -0.32 U: 101.26
QZSS: N: 0.06 E: -0.28 U: 100.51

L5

GPS: N: 0.06 E: -0.72 U: 100.29
QZSS: N: 0.06 E: -0.72 U: 100.29
SBAS: N: 0.06 E: -0.72 U: 100.29
IRNSS: N: 0.06 E: -0.72 U: 100.29

E1

GALILEO: N: -0.49 E: -0.09 U: 102.20
BeiDou: N: -0.49 E: -0.09 U: 102.20

E2

BeiDou: N: -0.52 E: -0.27 U: 102.16

E5

GALILEO: N: 0.08 E: -0.50 U: 100.06

E5a

GALILEO: N: 0.06 E: -0.72 U: 100.29

E5b

GALILEO: N: 0.08 E: -0.36 U: 100.09
BeiDou: N: 0.08 E: -0.36 U: 100.09

E6

GALILEO: N: -0.13 E: -0.65 U: 103.41
BeiDou: N: -0.08 E: -0.51 U: 102.63

LEX

QZSS: N: -0.13 E: -0.65 U: 103.41


Means

GPS

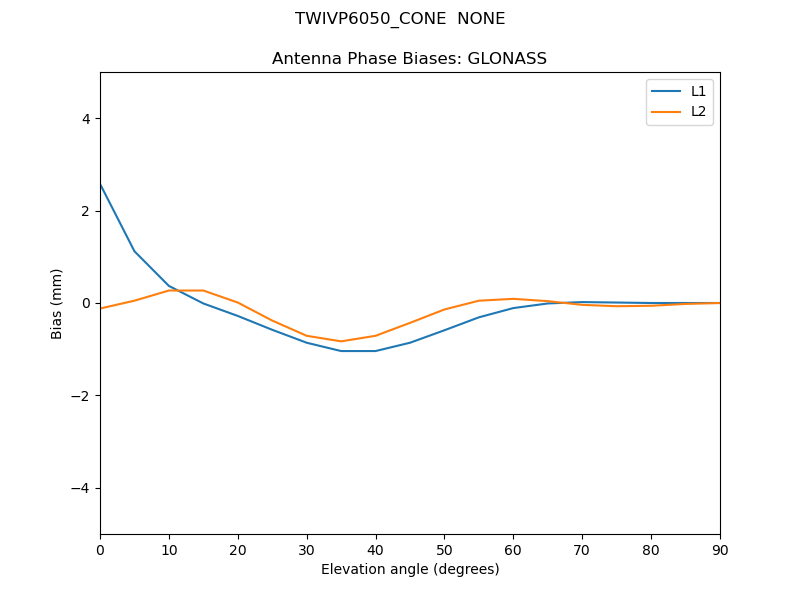

GLONASS

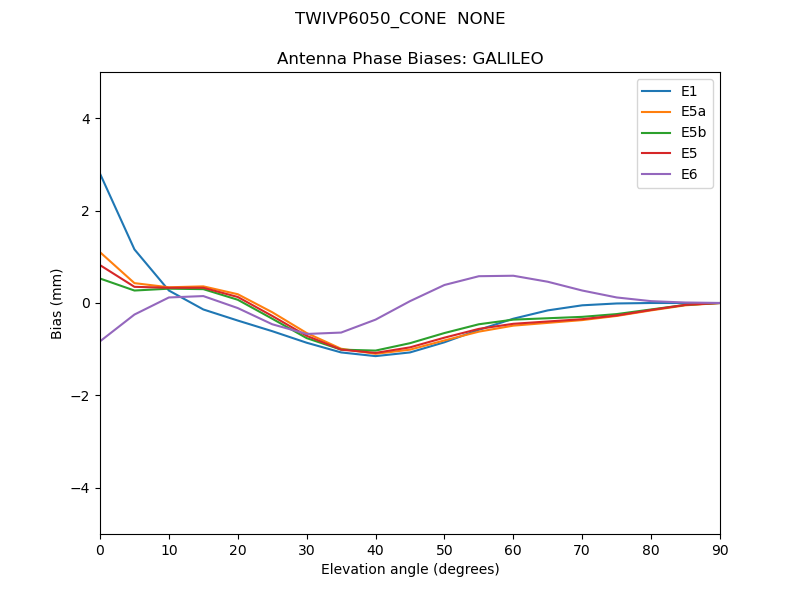

GALILEO


BeiDOU

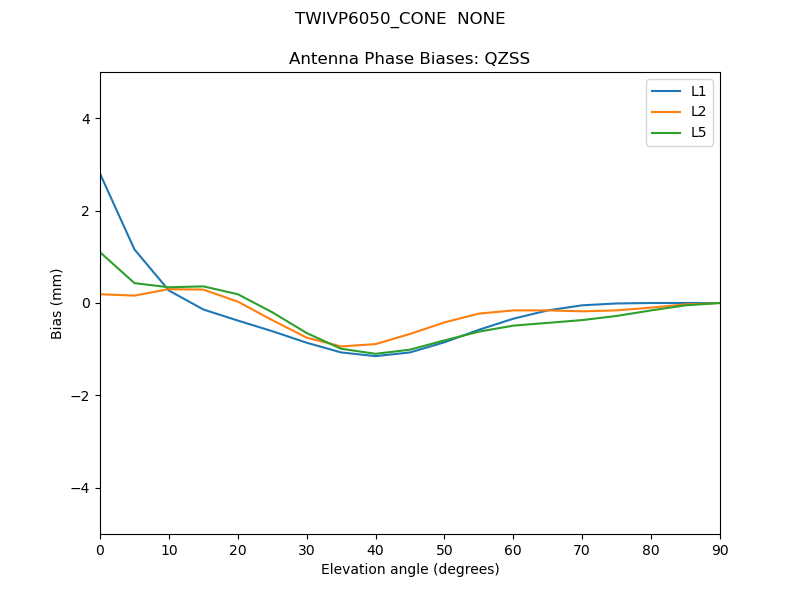

QZSS

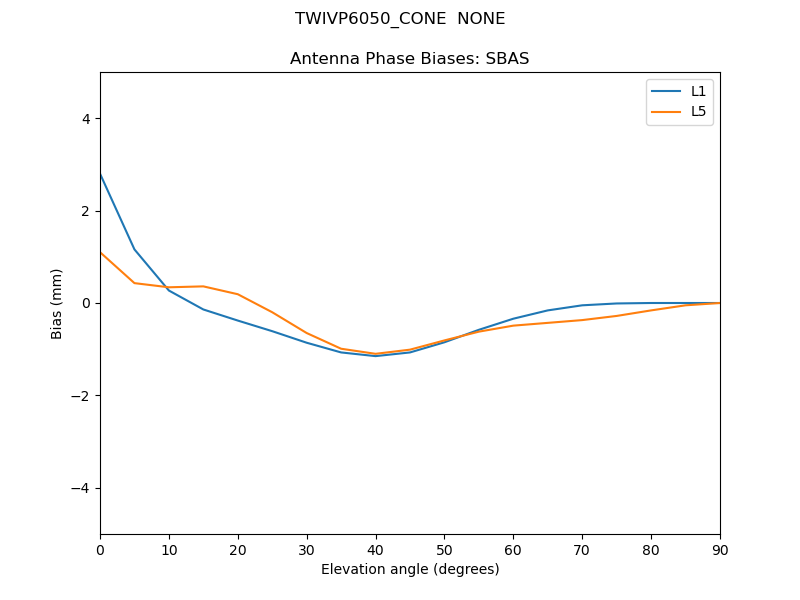

SBAS

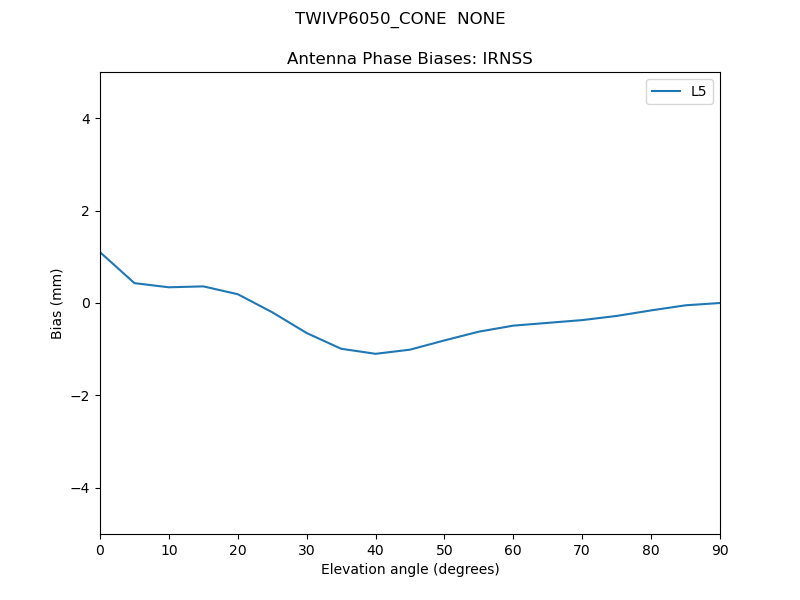

IRNSS


Azimuths

GPS


Bias Delta

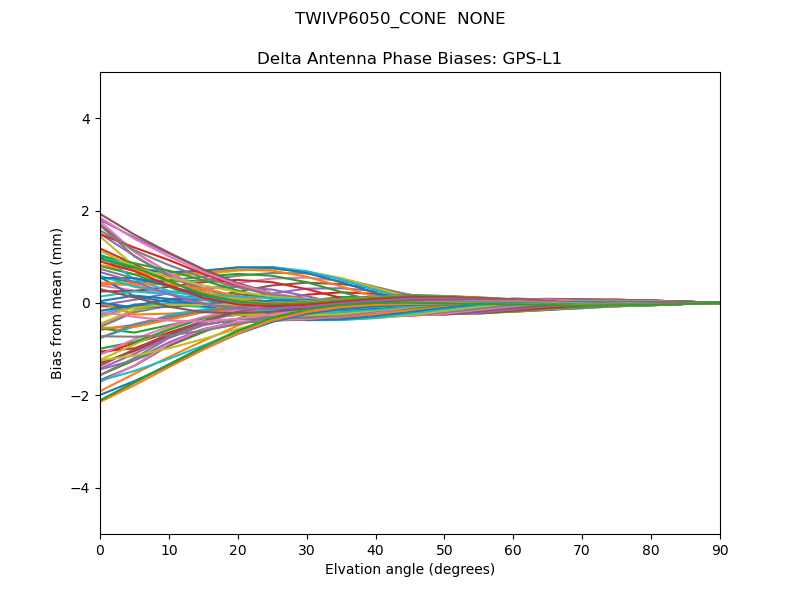

GPS-L1

GPS-L1GPS-L1

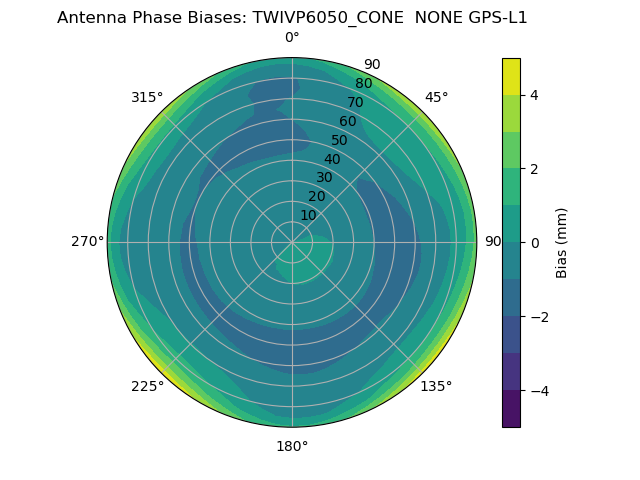

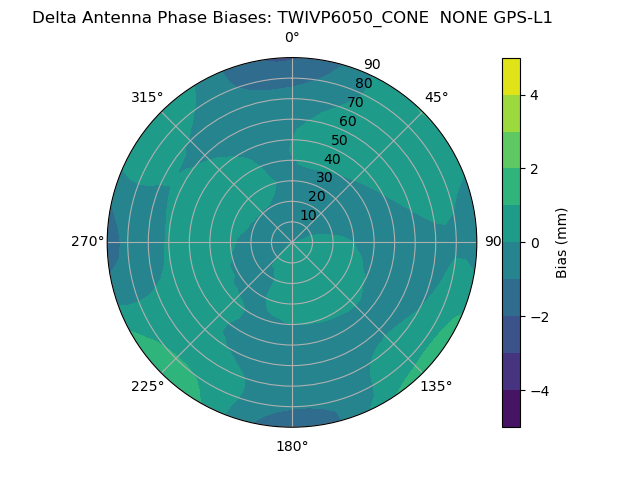

Radial GPS-L1Radial GPS-L1

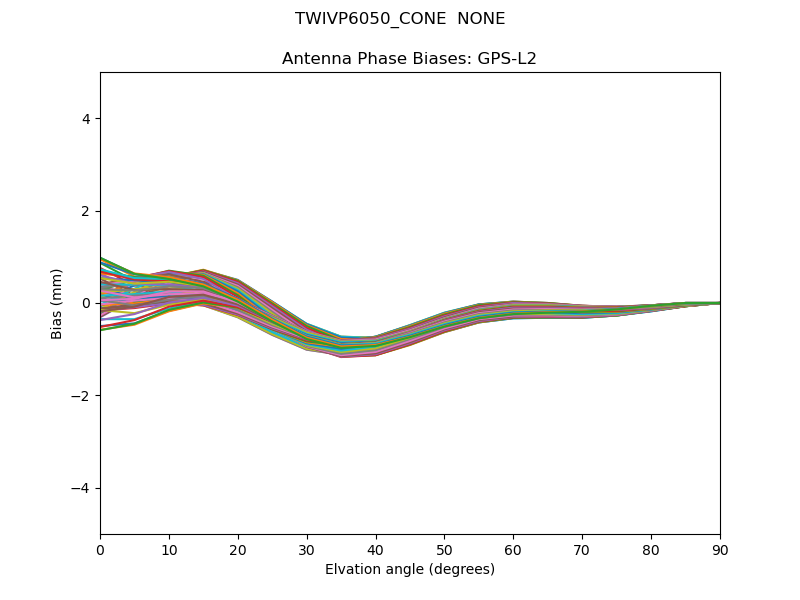

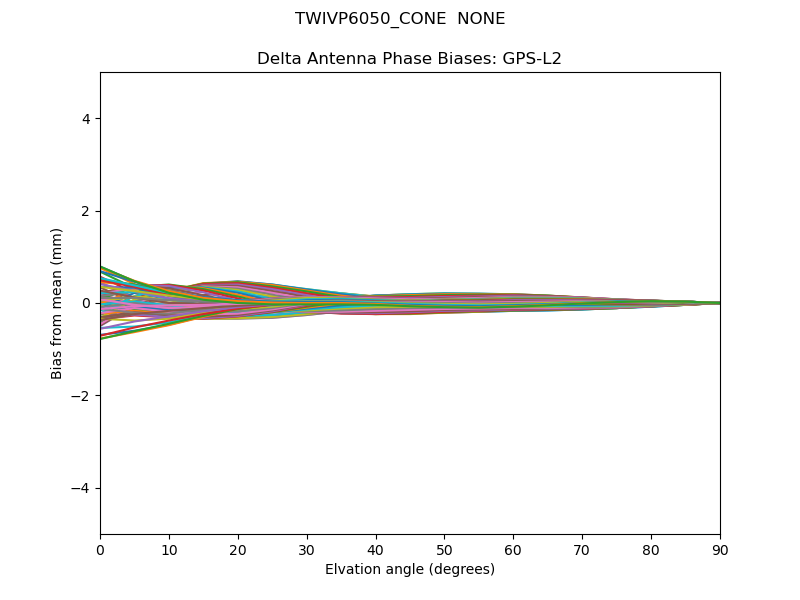

GPS-L2

GPS-L2GPS-L2
Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5

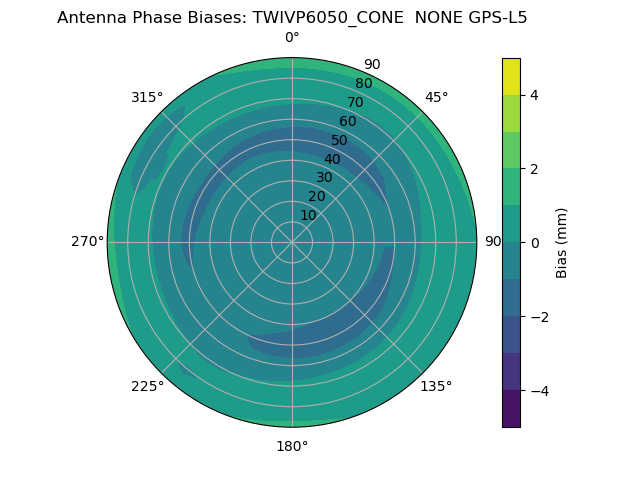

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

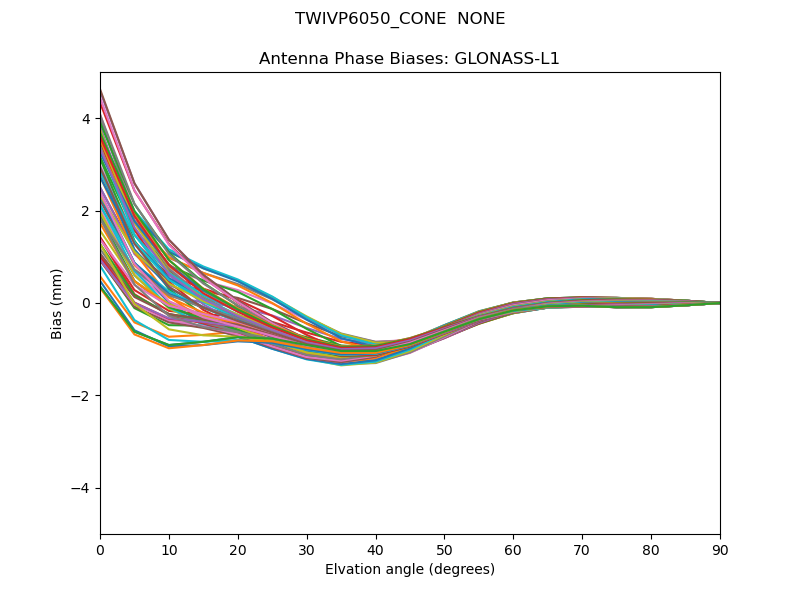

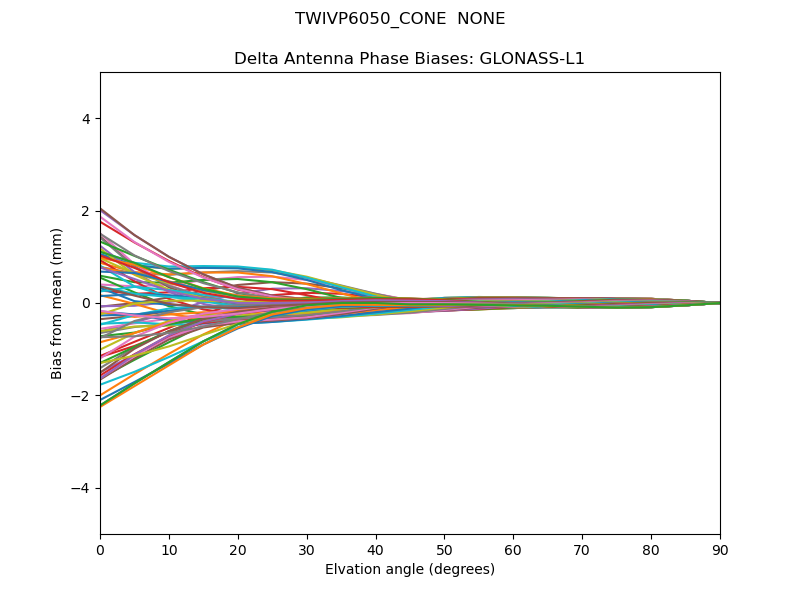

GLONASS-L1

GLONASS-L1GLONASS-L1

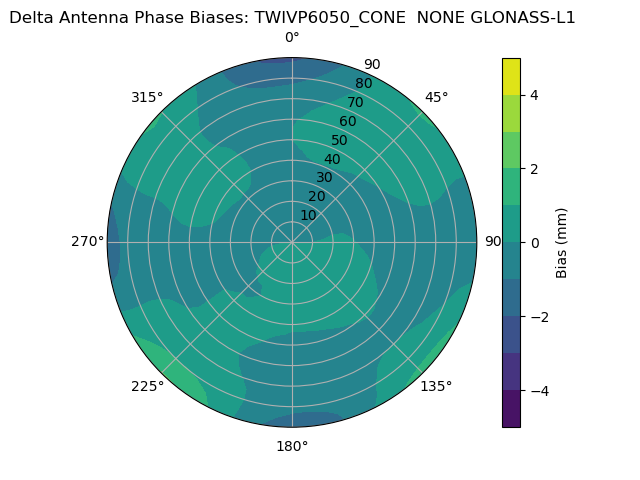

Radial GLONASS-L1Radial GLONASS-L1

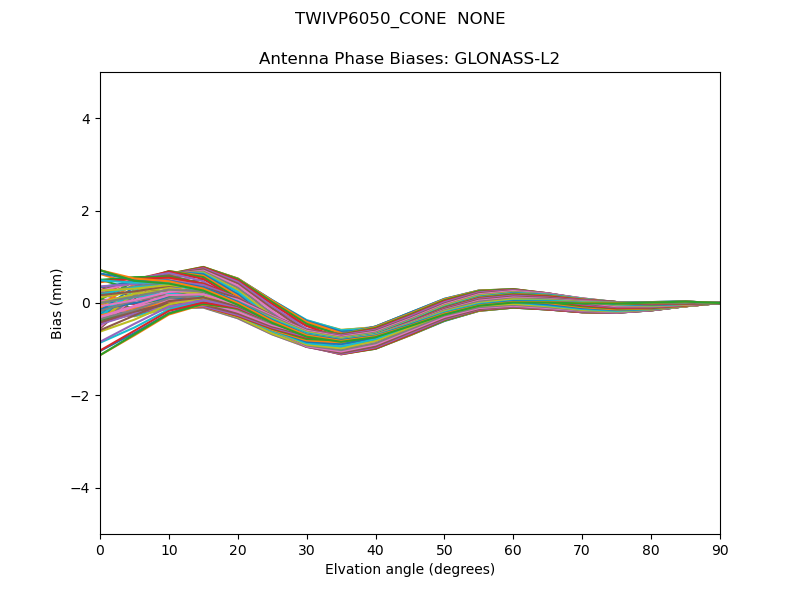

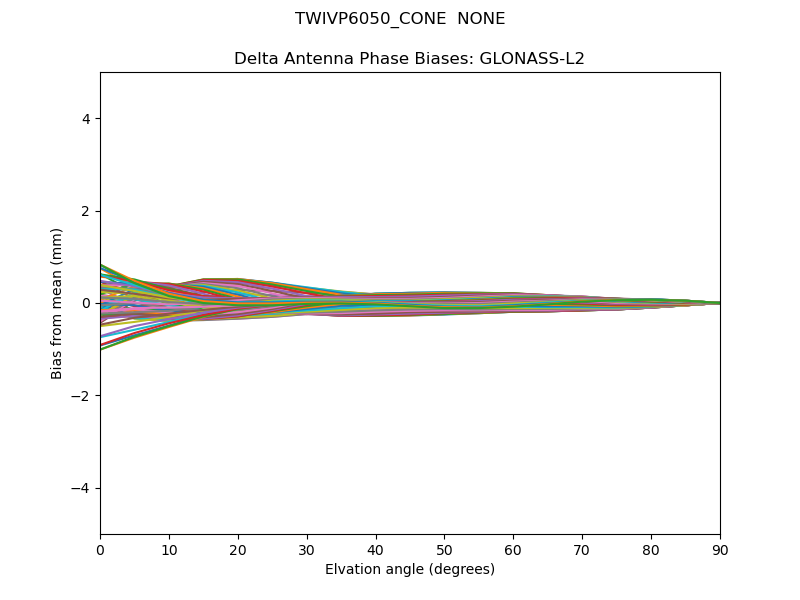

GLONASS-L2

GLONASS-L2GLONASS-L2

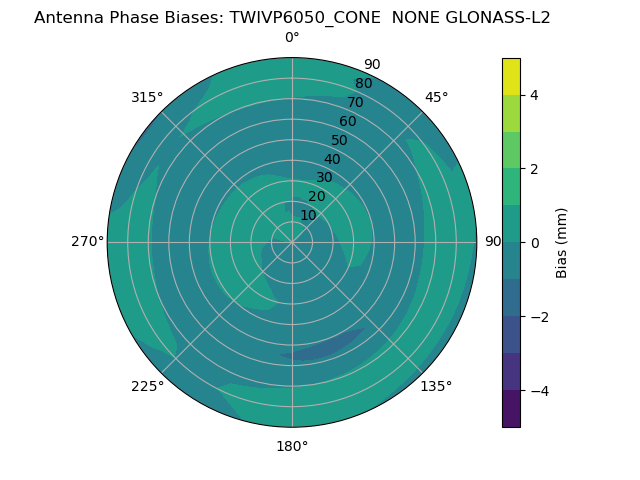

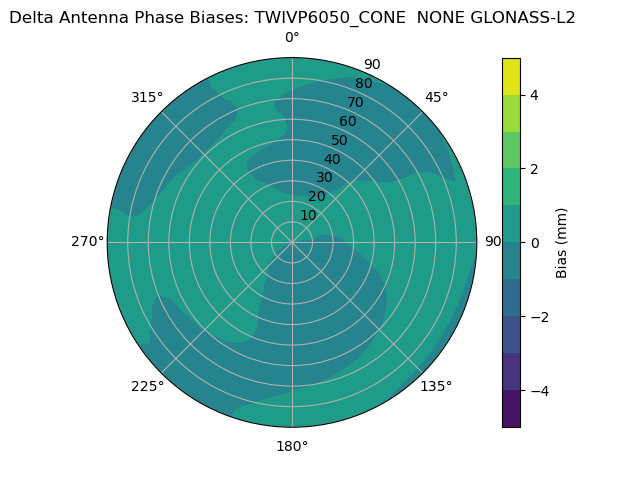

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

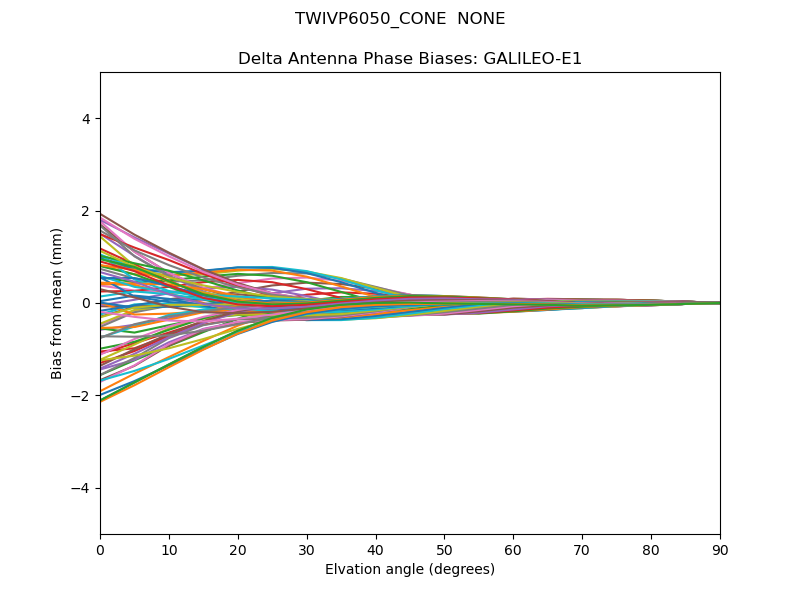

GALILEO-E1

GALILEO-E1GALILEO-E1

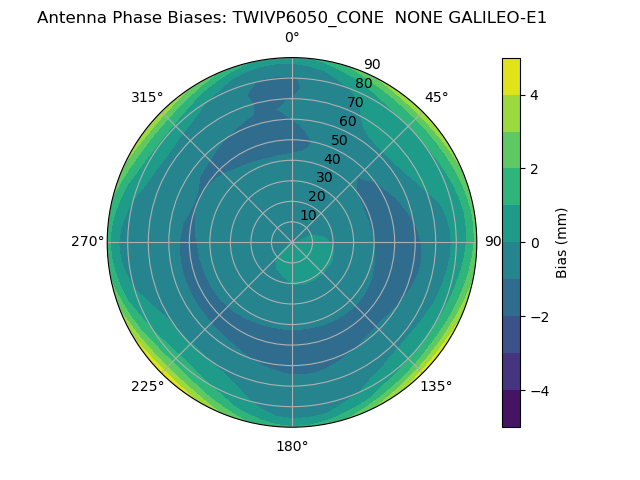

Radial GALILEO-E1Radial GALILEO-E1

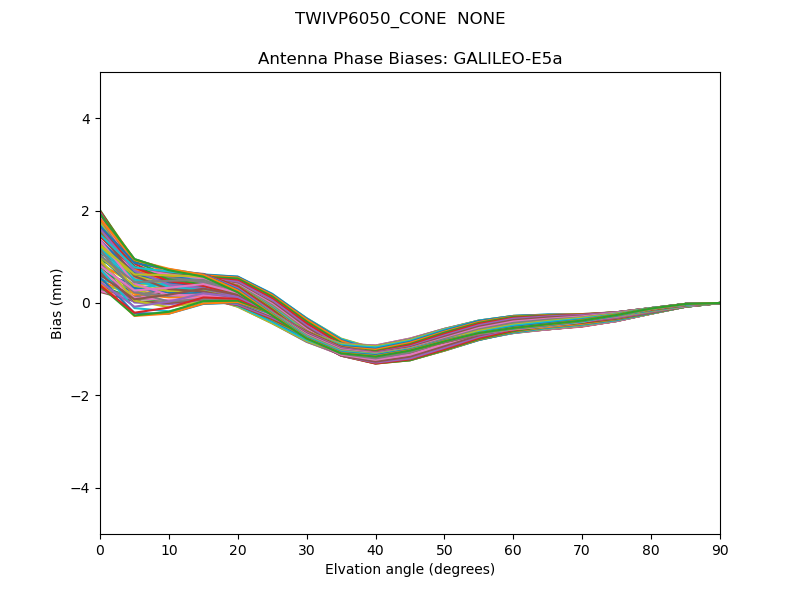

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

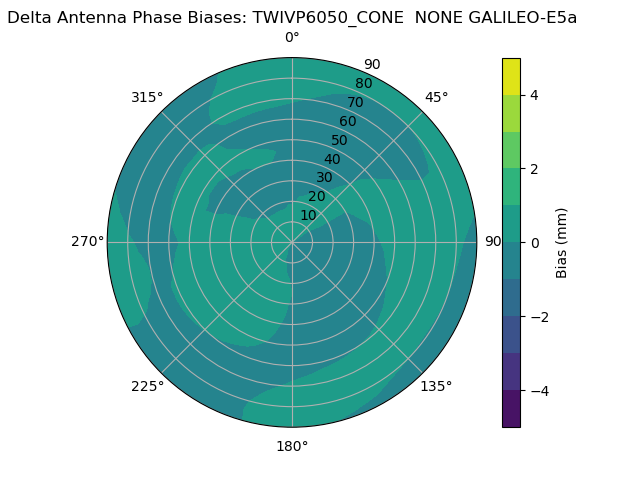

Radial GALILEO-E5aRadial GALILEO-E5a

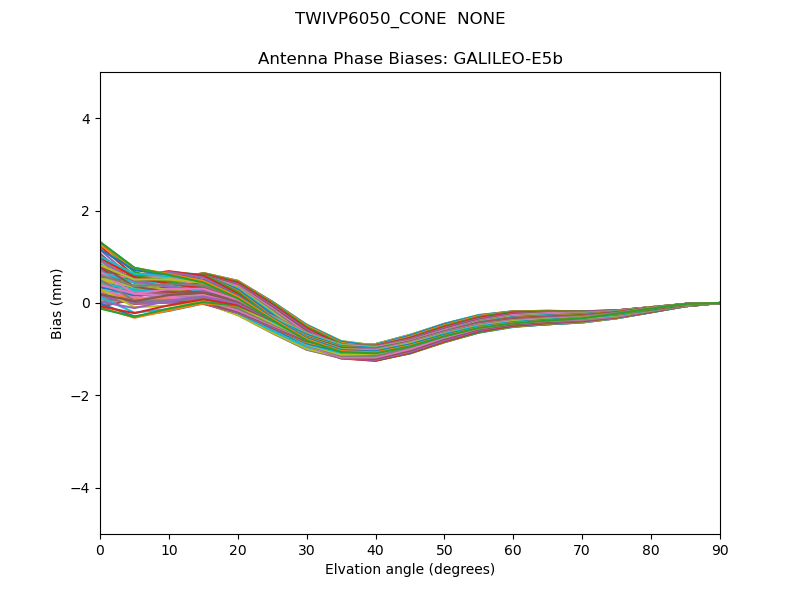

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

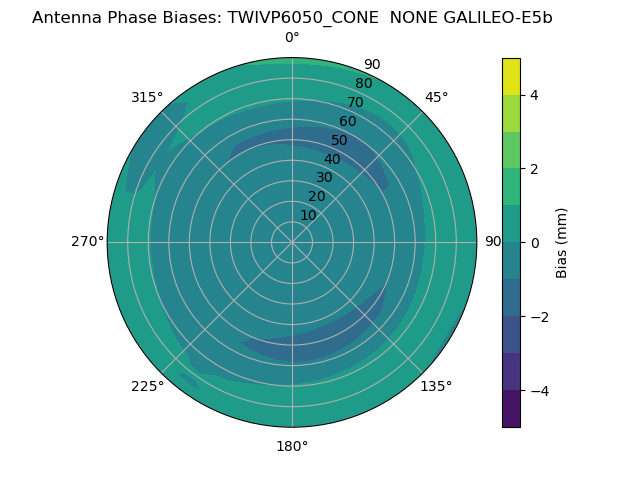

Radial GALILEO-E5bRadial GALILEO-E5b

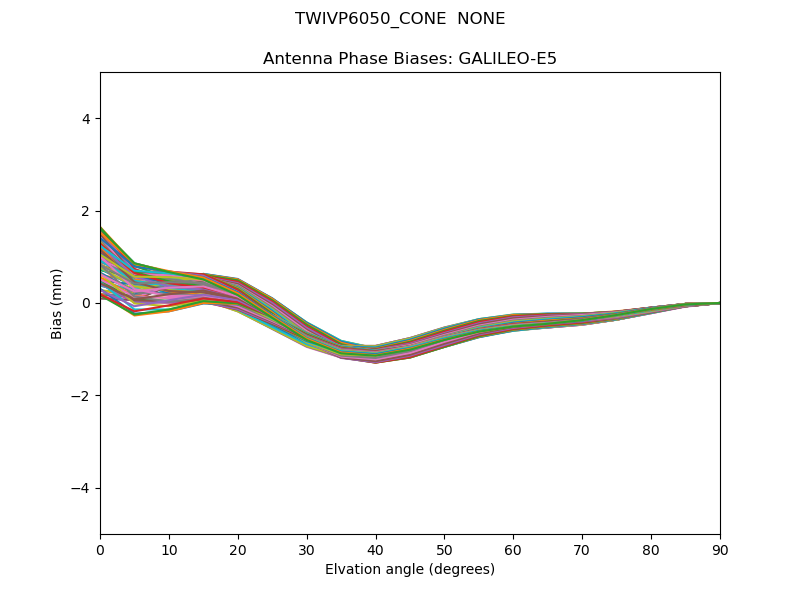

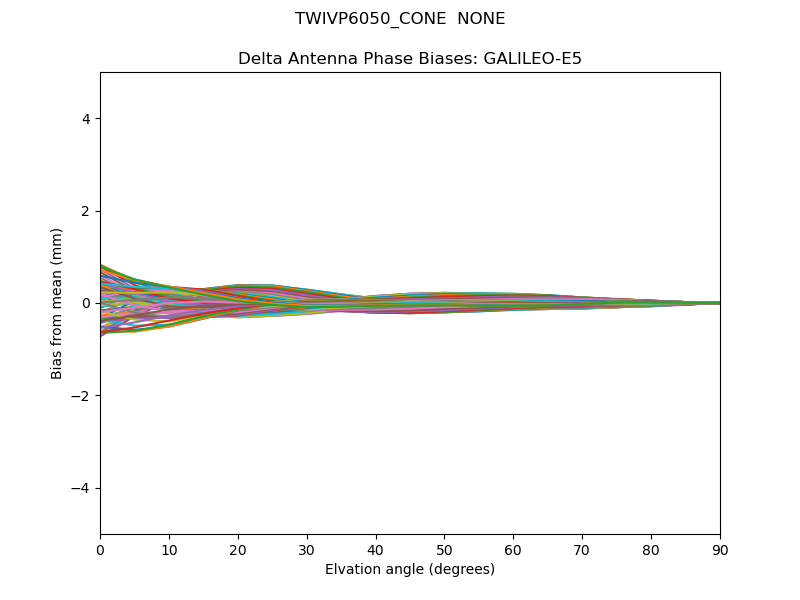

GALILEO-E5

GALILEO-E5GALILEO-E5

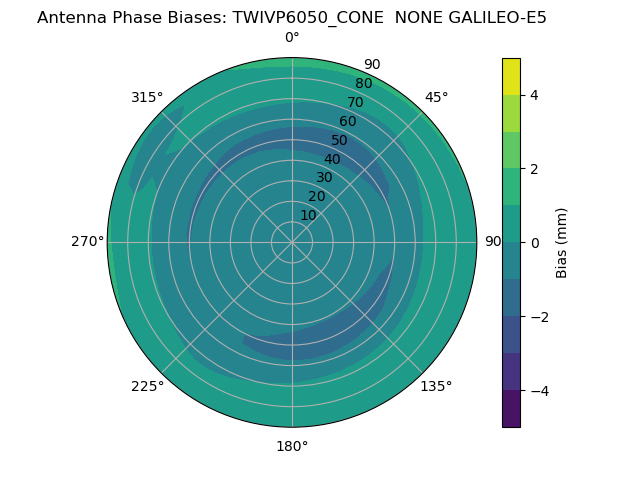

Radial GALILEO-E5Radial GALILEO-E5

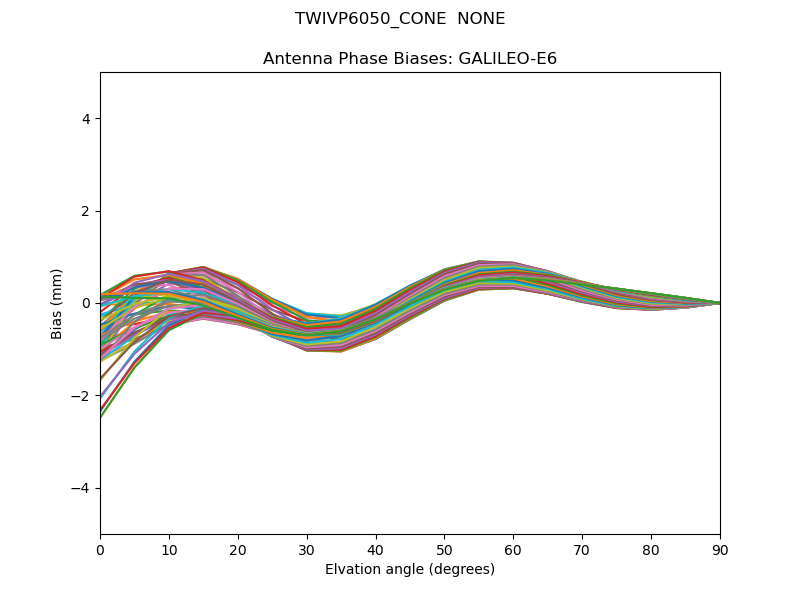

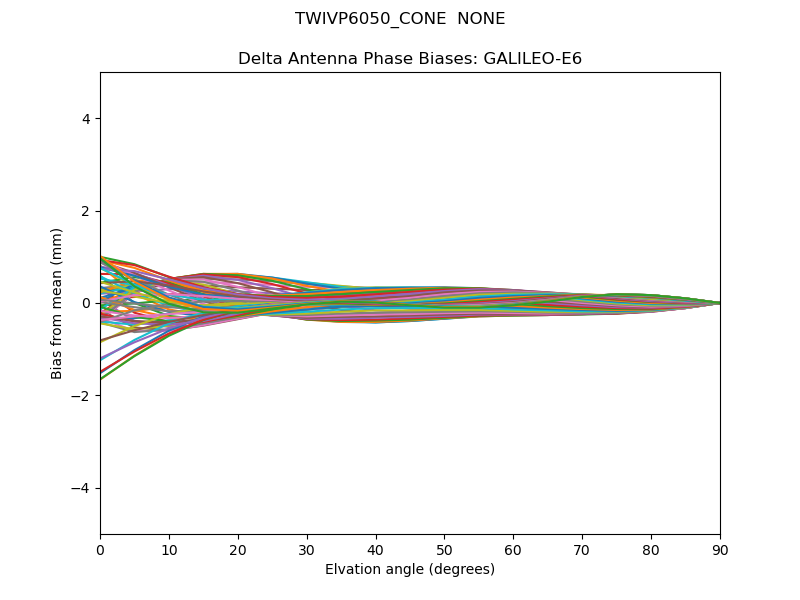

GALILEO-E6

GALILEO-E6GALILEO-E6

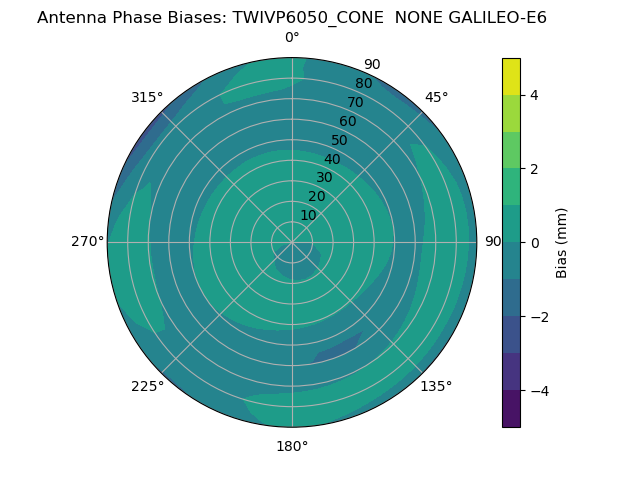

Radial GALILEO-E6Radial GALILEO-E6

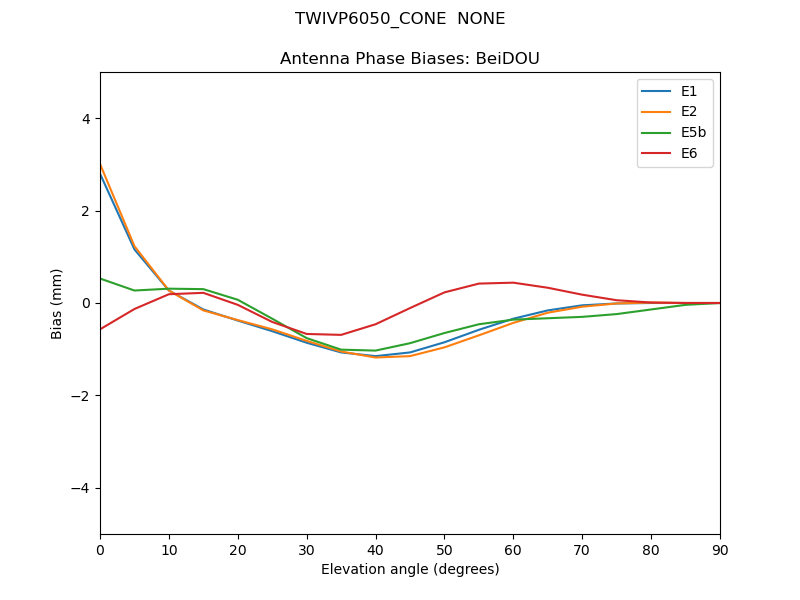

BeiDOU


Bias Delta

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

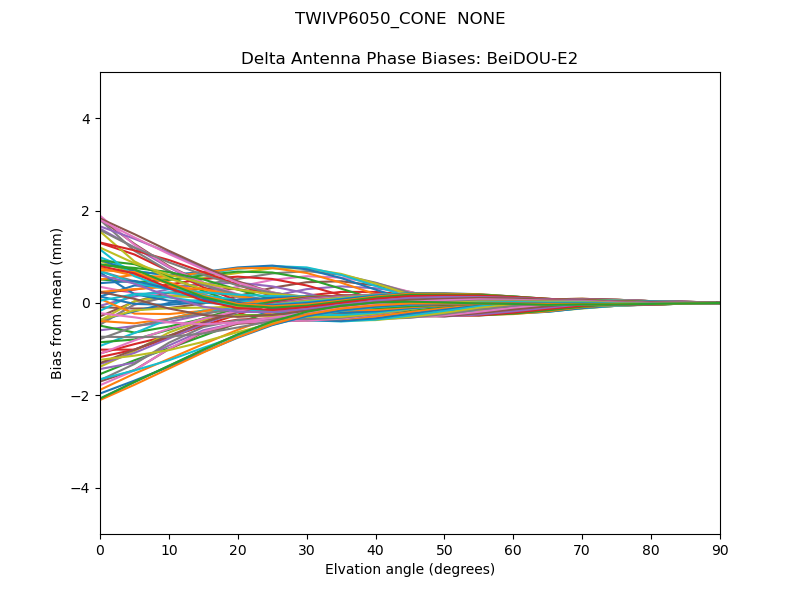

BeiDOU-E2

BeiDOU-E2BeiDOU-E2
Radial BeiDOU-E2Radial BeiDOU-E2

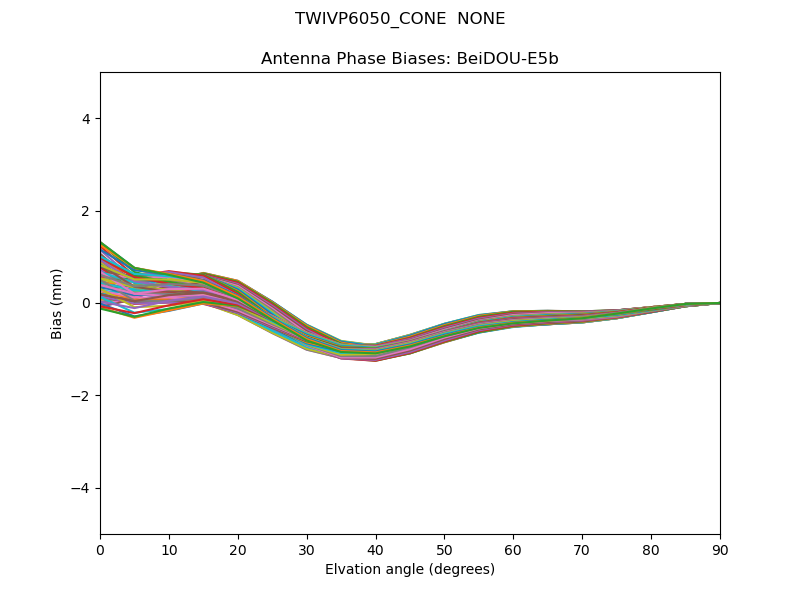

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

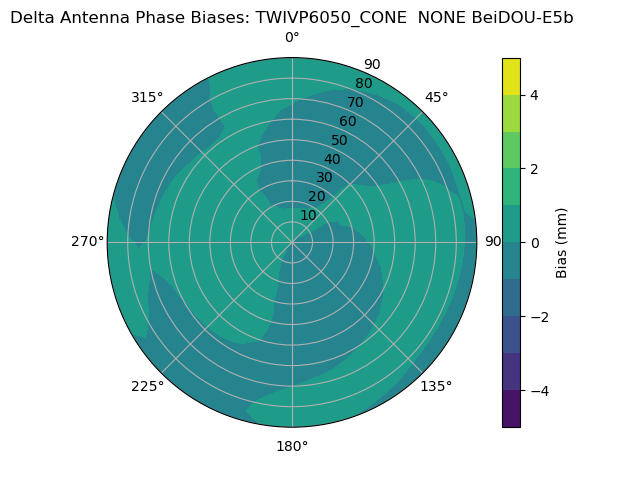

Radial BeiDOU-E5bRadial BeiDOU-E5b

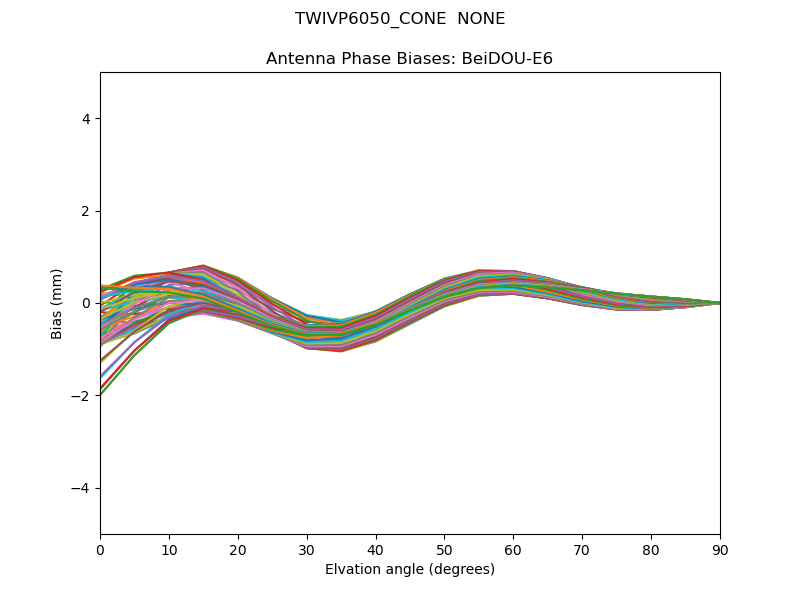

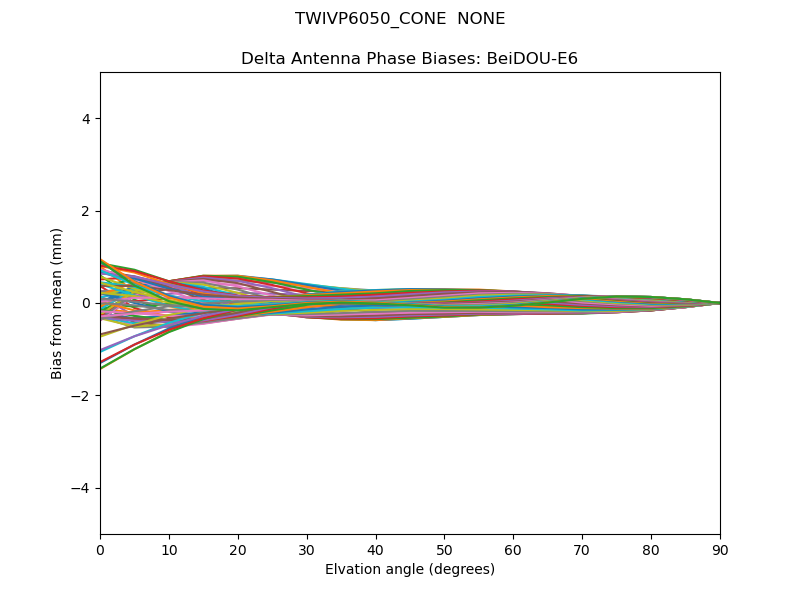

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

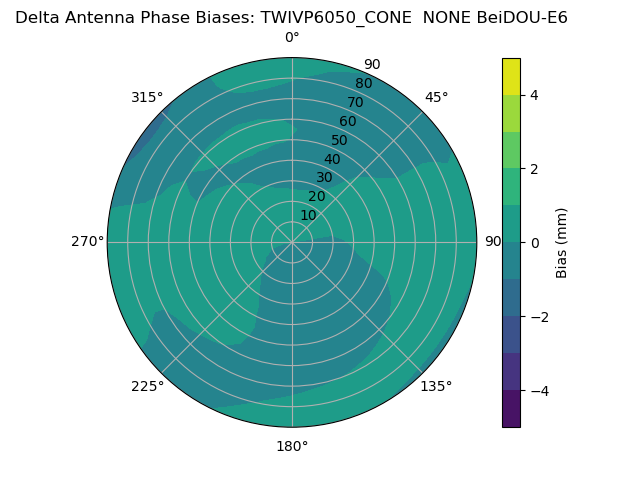

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

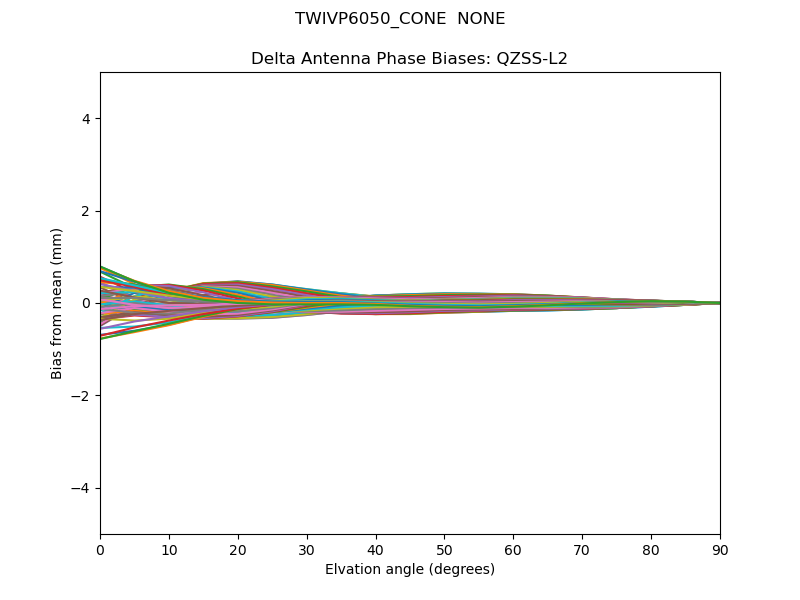

QZSS-L2

QZSS-L2QZSS-L2
Radial QZSS-L2Radial QZSS-L2

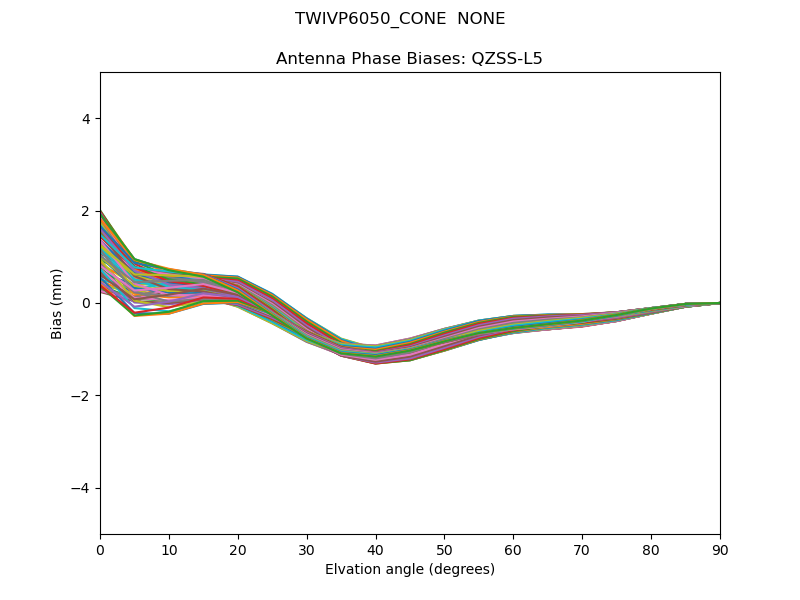

QZSS-L5

QZSS-L5QZSS-L5

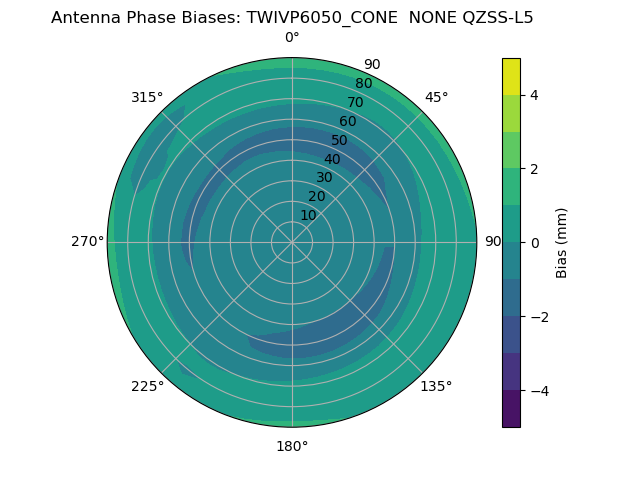

Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1

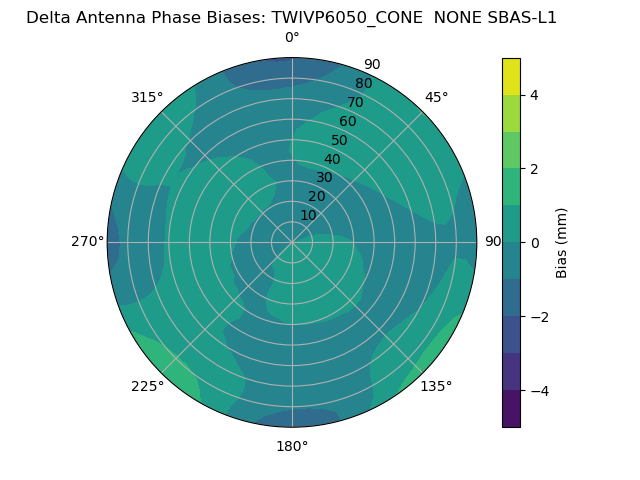

Radial SBAS-L1Radial SBAS-L1

SBAS-L5

SBAS-L5SBAS-L5
Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

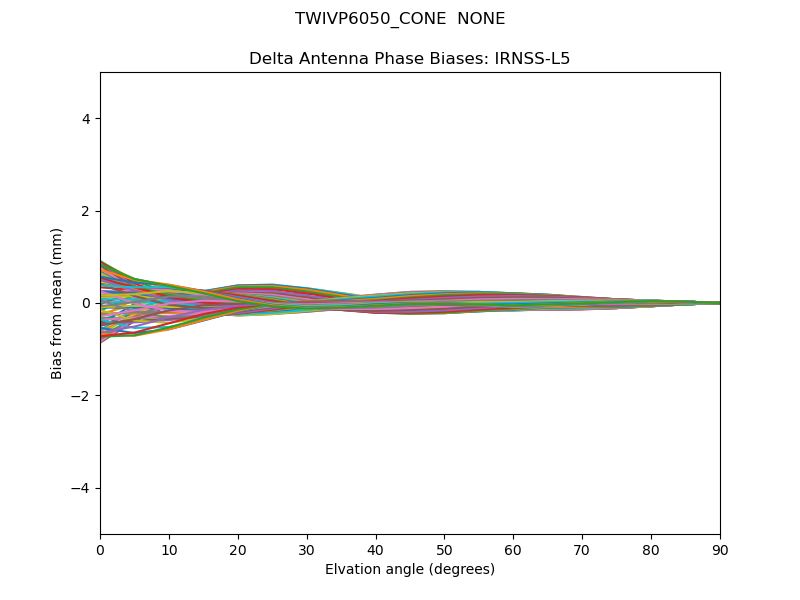

IRNSS-L5

IRNSS-L5IRNSS-L5
Radial IRNSS-L5Radial IRNSS-L5
